Compact inserts
50V-830V/6.5A-100A
1-21 contact(s)
Connection options include axial screws, crimp, and Quick in
Product column： Rectangular Connectors >>Inserts >>HQ insert series

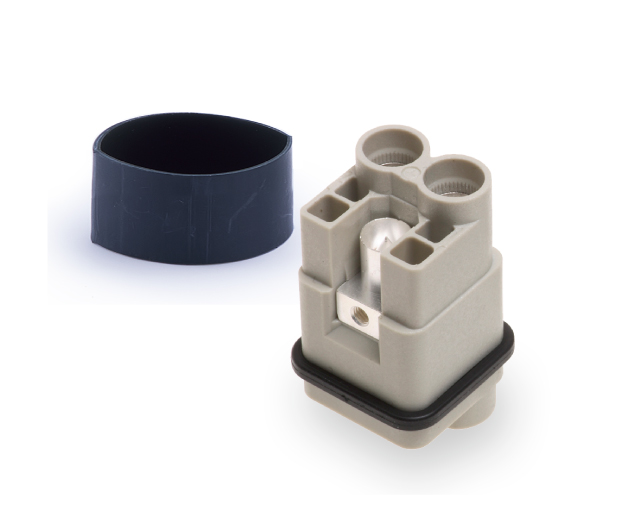

Rated voltage:830V,Wire gauge (mm²):4-10mm²,Wire gauge (AWG):12-8 AWG,Male/female:Male,Connection type:Axial bolt connection,Number of connector contacts:2,Rated current:40A

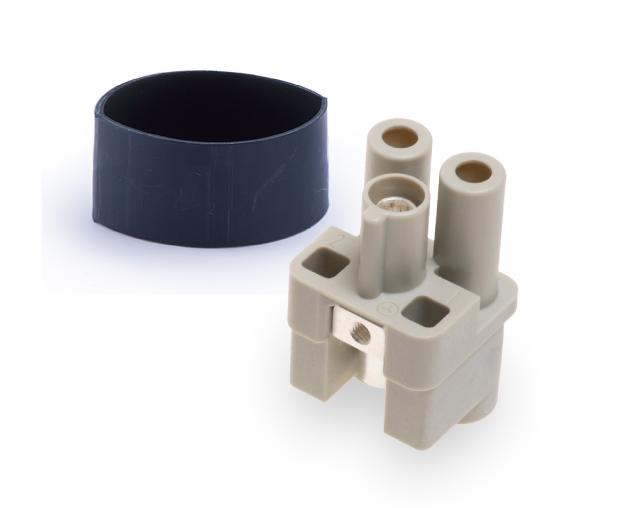

Male/female:Female,Connection type:Axial bolt connection,Number of connector contacts:2,Rated current:40A,Rated voltage:830V,Wire gauge (mm²):4-10mm²,Wire gauge (AWG):12-8 AWG

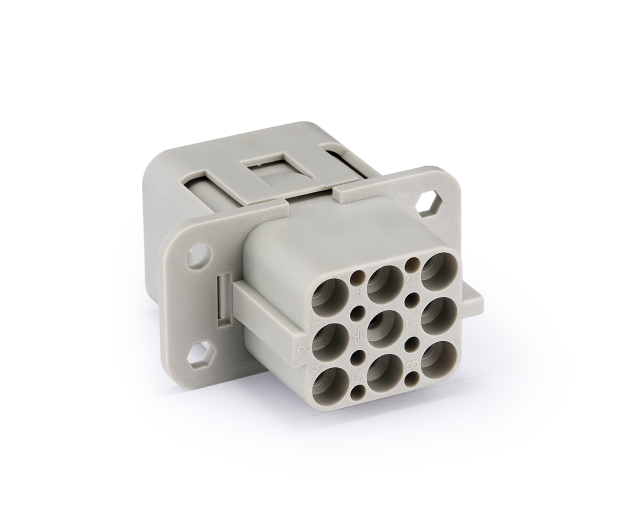

Male/female:Female,Connection type:Crimp connection,Number of connector contacts:8,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG

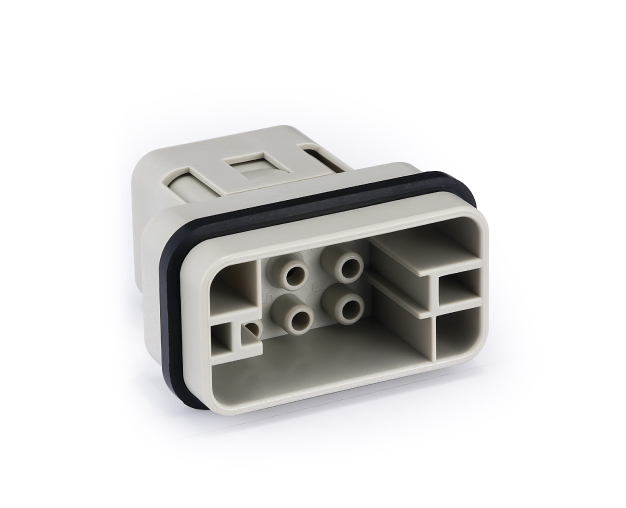

Male/female:Male,Connection type:Crimp connection,Number of connector contacts:8,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG

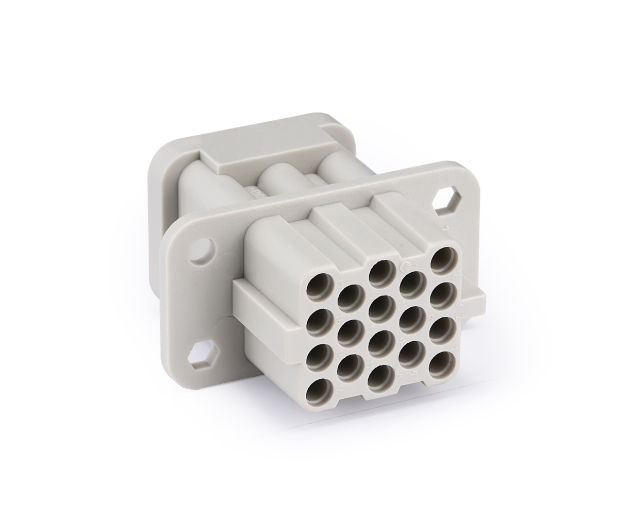

Male/female:Female,Connection type:Crimp connection,Number of connector contacts:17,Rated current:10A,Rated voltage:250V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

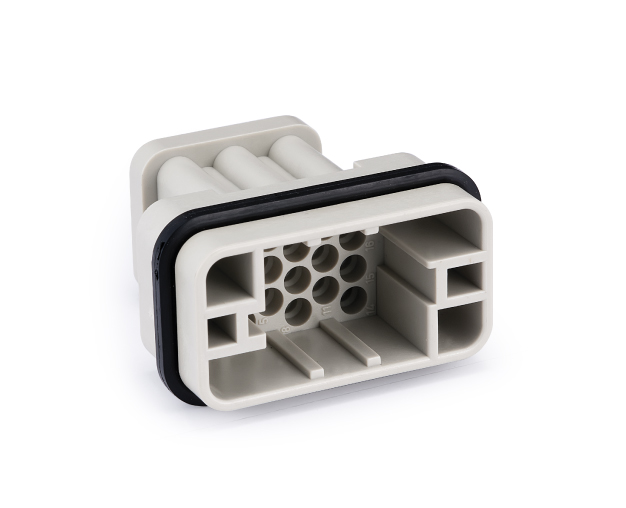

Male/female:Male,Connection type:Crimp connection,Number of connector contacts:17,Rated current:10A,Rated voltage:250V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

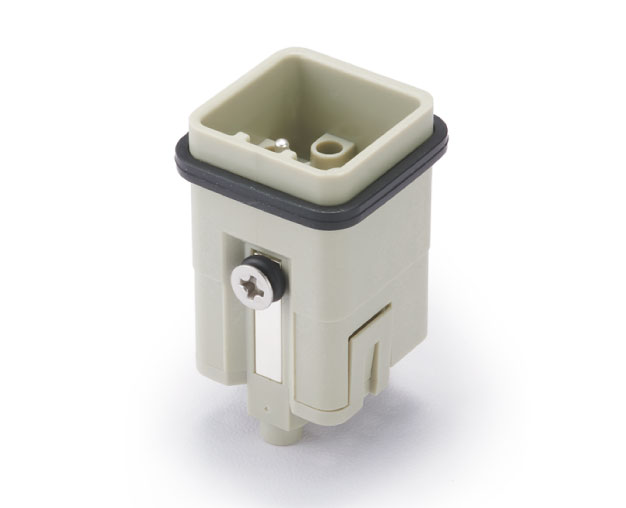

Male/female:Male,Connection type:Crimp connection,Number of connector contacts:12,Rated current:10A,Rated voltage:400V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

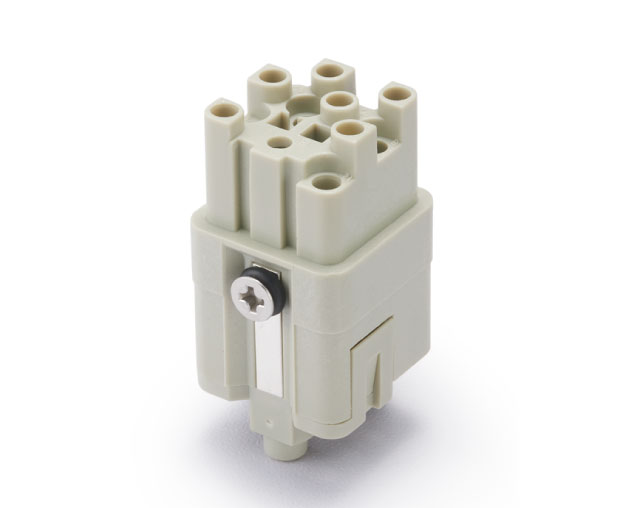

Male/female:Female,Connection type:Crimp connection,Number of connector contacts:12,Rated current:10A,Rated voltage:400V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
