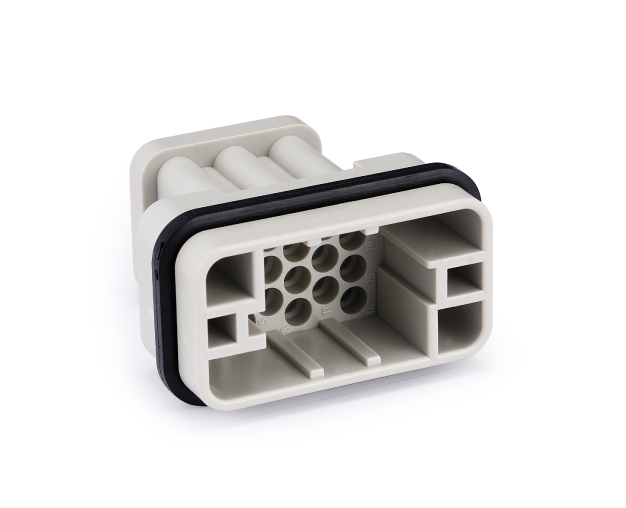

HQ-017-MC

Model： HQ-017-MC

Order No： 130 017 010 0001

Do you need to order crimp contacts separately： Yes

Suitable for the shell of the insert housing

Pin suitable for the core body

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HQ insert series
Male/female

Male
Connection type

Crimp connection
Specifications

HC
Number of connector contacts

17
Grounding contacts

Yes
Rated current

10A
Rated voltage

250V
Rated pulse voltage

4KV
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Class of pollution

2
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Silver-plated

Gold-plated
Contact resistance

≤3mΩ
Wire gauge (mm²)

0.14-2.5mm²
Wire gauge (AWG)

26-14 AWG
Stripping length

0.14-1.5mm²→8mm

2.5mm²→6mm
Standard

DIN EN 60664

DIN EN 61984

Authentication

UL
CUL
CE
EAC
CQC
