HD series extended inserts
Suitable for customer-specific installations
250V/10A
40 and 64 contacts
Screw connection
Product column： Rectangular Connectors >>Inserts >>HD AV insert series

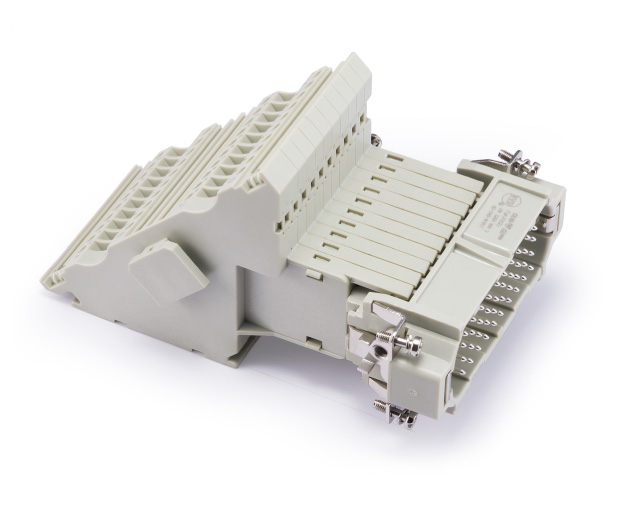

Connection type:Screw connection,Male/female:Male,Specifications:16B|32B,Number of connector contacts:40,Rated current:10A,Rated voltage:250V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):NA,Wire gauge (AWG):NA,Tightening/testing torque:0.5Nm,Wire gauge (mm²):NA,Wire gauge (AWG):NA

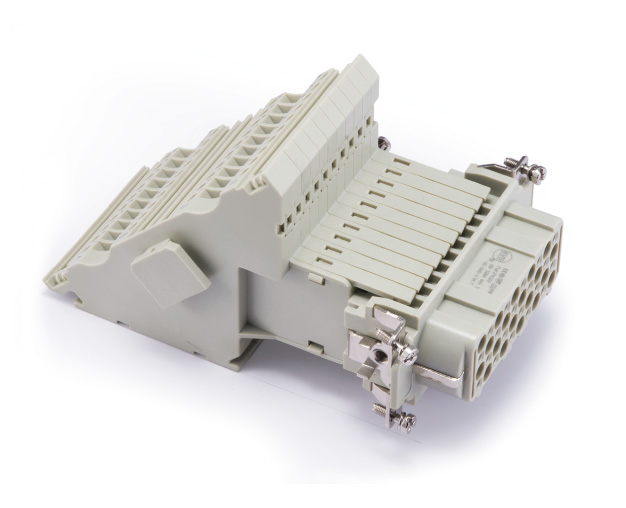

Connection type:Screw connection,Male/female:Female,Specifications:16B|32B,Number of connector contacts:40,Rated current:10A,Rated voltage:250V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):NA,Wire gauge (AWG):NA,Tightening/testing torque:0.5Nm,Wire gauge (mm²):NA,Wire gauge (AWG):NA

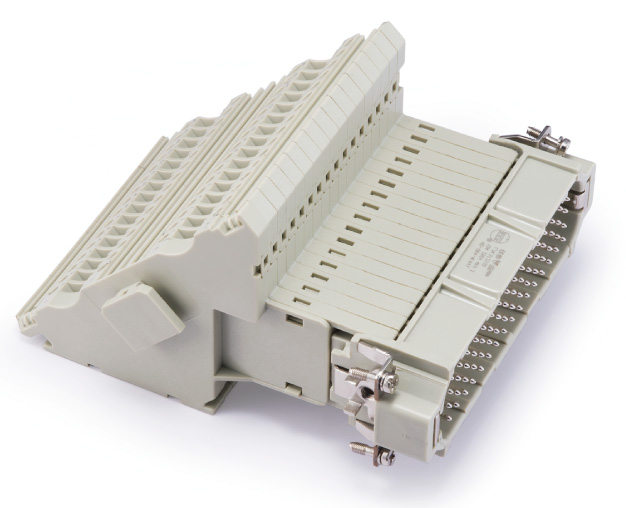

Connection type:Screw connection,Male/female:Male,Specifications:24B|48B,Number of connector contacts:64,Rated current:10A,Rated voltage:250V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):NA,Wire gauge (AWG):NA,Tightening/testing torque:0.5Nm,Wire gauge (mm²):NA,Wire gauge (AWG):NA

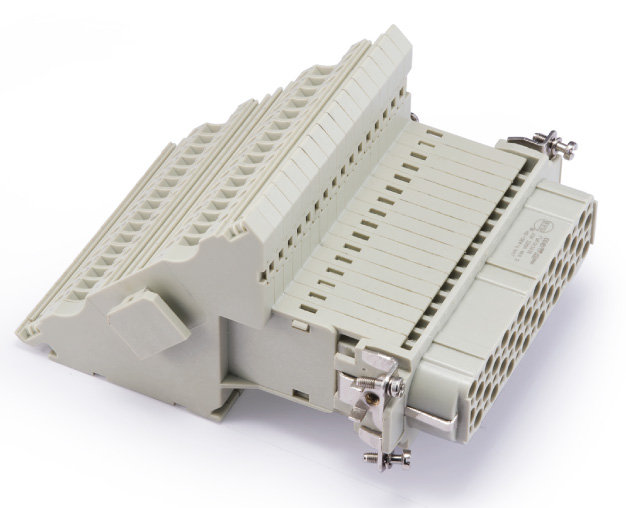

Connection type:Screw connection,Male/female:Female,Specifications:24B|48B,Number of connector contacts:64,Rated current:10A,Rated voltage:250V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):NA,Wire gauge (AWG):NA,Tightening/testing torque:0.5Nm,Wire gauge (mm²):NA,Wire gauge (AWG):NA
