Modular heavy-current inserts
Suitable for heavy-current and high-voltage applications, typically used in rail transportation
1150V-4000V/250A-650A
1-4 contact(s)
Connection options include axial screw and crimp
Product column： Rectangular Connectors >>Inserts >>HC insert series
Connection type:Crimp connection,Male/female:Female,Specifications:HP1T,Number of connector contacts:1,Rated current:1000A,Rated voltage:4000V,Wire gauge (mm²):300mm²
Wire gauge (mm²):300mm²,Connection type:Crimp connection,Male/female:Male,Specifications:HP1T,Number of connector contacts:1,Rated current:1000A,Rated voltage:4000V

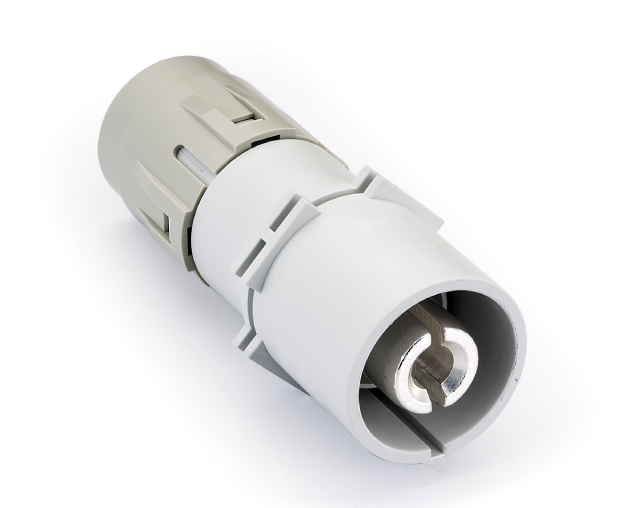

Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:1,Wire gauge (mm²):35-70mm²,Wire gauge (AWG):35-70mm²→2-00 AWG

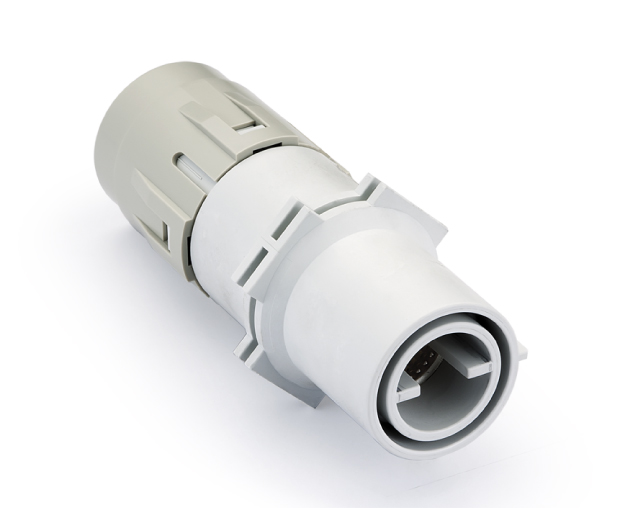

Connection type:Axial bolt connection,Male/female:Female,Number of connector contacts:1,Wire gauge (mm²):35-70mm²,Wire gauge (AWG):35-70mm²→2-00 AWG
Connection type:Crimp connection,Male/female:Female,Number of connector contacts:1,Wire gauge (mm²):35-70mm²,Wire gauge (AWG):35-70mm²→2-00 AWG
Connection type:Crimp connection,Male/female:Male,Number of connector contacts:1,Wire gauge (mm²):35-70mm²,Wire gauge (AWG):35-70mm²→2-00 AWG
Connection type:Crimp connection,Male/female:Male,Number of connector contacts:1,Wire gauge (mm²):35-120mm²
Connection type:Crimp connection,Male/female:Female,Number of connector contacts:1,Wire gauge (mm²):35-120mm²
