35A heavy-current inserts
400V/35A
Up to 12 contacts
Screw connection
Product column： Rectangular Connectors >>Inserts >>HSB insert series
Connection type:Spring connection (quick connection),Male/female:Female,Specifications:16B|32B,Number of connector contacts:4/2,Rated current:40A|16A,Rated voltage:690V|500V,Wire gauge (mm²):0.5-2.5mm²|0.5-6mm²,Wire gauge (AWG):20-14 AWG|20-10 AWG
Connection type:Spring connection (quick connection),Male/female:Male,Specifications:16B|32B,Number of connector contacts:4/2,Rated current:40A|16A,Rated voltage:690V|500V,Wire gauge (mm²):0.5-2.5mm²|0.5-6mm²,Wire gauge (AWG):20-14 AWG|20-10 AWG
Connection type:Screw connection,Male/female:Male,Specifications:16B|32B,Number of connector contacts:6,Rated current:35A,Rated voltage - phase to ground:400V,Wire gauge (mm²):1.5-6mm²,Wire gauge (AWG):max.10 AWG

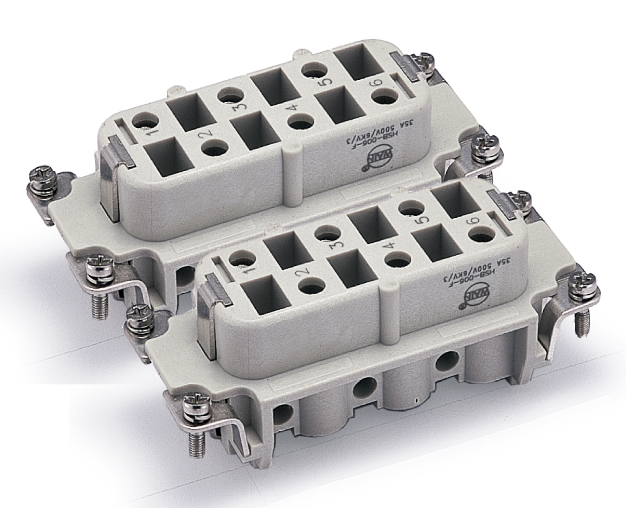

Wire gauge (AWG):max.10 AWG,Connection type:Screw connection,Male/female:Female,Specifications:16B|32B,Number of connector contacts:6,Rated current:35A,Rated voltage - phase to ground:400V,Wire gauge (mm²):1.5-6mm²
Connection type:Screw connection,Male/female:Female,Specifications:16B|32B,Number of connector contacts:6,Rated current:35A,Rated voltage - phase to ground:400V,Wire gauge (mm²):1.5-6mm²,Wire gauge (AWG):max.10 AWG
