Small inserts 400V/16A
Up to 32 contacts
Multiple connection options include screw, crimp, spring, and Quick in
Product column： Rectangular Connectors >>Inserts >>HA insert series
Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-12 AWG,Connection type:Spring connection (quick connection),Male/female:Female,Specifications:3A,Number of connector contacts:3,Rated current:10A,Rated voltage - phase to ground:230V
Connection type:Spring connection (quick connection),Male/female:Male,Specifications:3A,Number of connector contacts:3,Rated current:10A,Rated voltage - phase to ground:230V,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-12 AWG
Number of connector contacts:4,Rated current:10A,Rated voltage - phase to ground:230V,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-12 AWG,Connection type:Spring connection (quick connection),Male/female:Female,Specifications:3A
Connection type:Spring connection (quick connection),Male/female:Male,Specifications:3A,Number of connector contacts:4,Rated current:10A,Rated voltage - phase to ground:230V,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-12 AWG

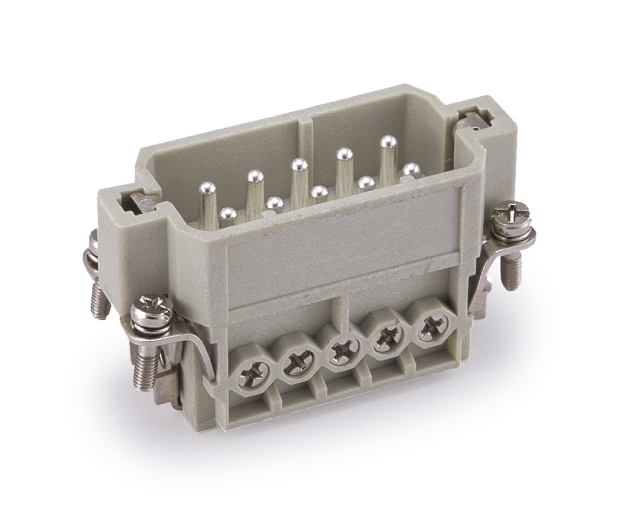

Connection type:Screw connection,Male/female:Male,Specifications:10A,Number of connector contacts:10,Rated current:16A,Rated voltage:250V,Wire gauge (mm²):0.75-2.5mm²,Wire gauge (AWG):18-14 AWG

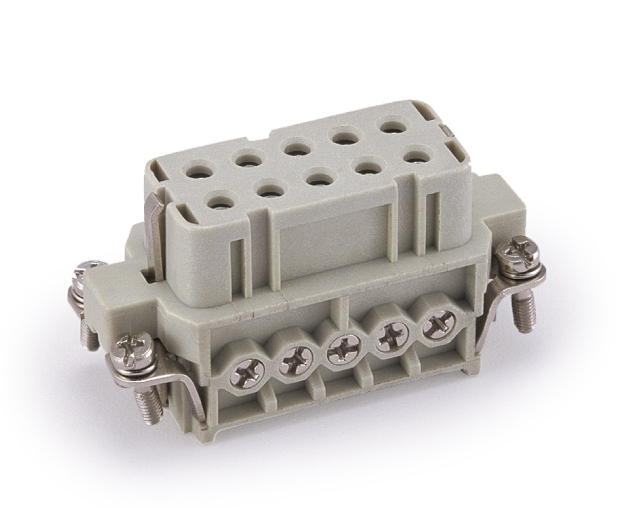

Connection type:Screw connection,Male/female:Female,Specifications:10A,Number of connector contacts:10,Rated current:16A,Rated voltage:250V,Wire gauge (mm²):0.75-2.5mm²,Wire gauge (AWG):18-14 AWG
Male/female:Male,Specifications:3A,Number of connector contacts:3,Rated current:10A,Rated voltage - phase to ground:230V,Wire gauge (mm²):0.75-1.5mm²,Wire gauge (AWG):18-16 AWG,Connection type:Screw connection
Connection type:Screw connection,Male/female:Female,Specifications:3A,Number of connector contacts:3,Rated current:10A,Rated voltage - phase to ground:230V,Wire gauge (mm²):0.75-2.5mm²,Wire gauge (AWG):18-14 AWG
