Product column： Rectangular Connectors >>Inserts >>HEE insert series

Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-14 AWG,Connection type:Spring connection (quick connection),Male/female:Male,Specifications:24B|48B,Number of connector contacts:46

Product column： Rectangular Connectors >>Inserts >>HEE insert series

Connection type:Spring connection (quick connection),Male/female:Female,Specifications:24B|48B,Number of connector contacts:46,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-14 AWG

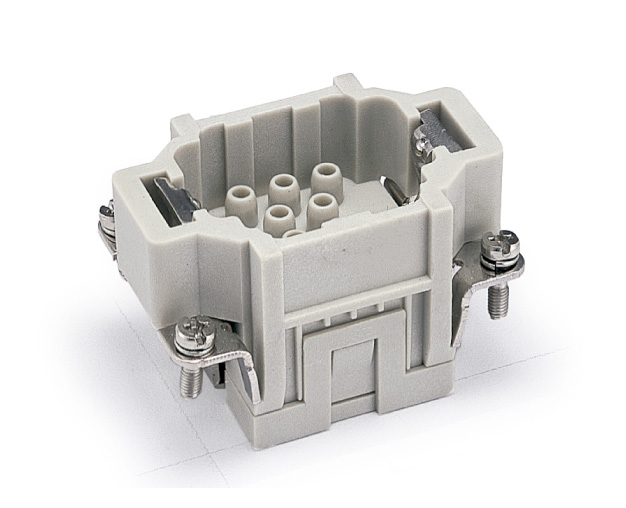

Product column： Rectangular Connectors >>Inserts >>HEE insert series

Connection type:Crimp connection,Male/female:Male,Specifications:6B,Number of connector contacts:10,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

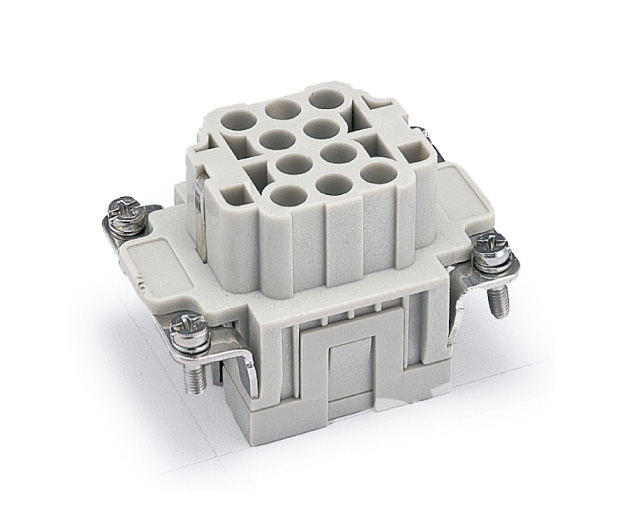

Product column： Rectangular Connectors >>Inserts >>HEE insert series

Connection type:Crimp connection,Male/female:Female,Specifications:6B,Number of connector contacts:10,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

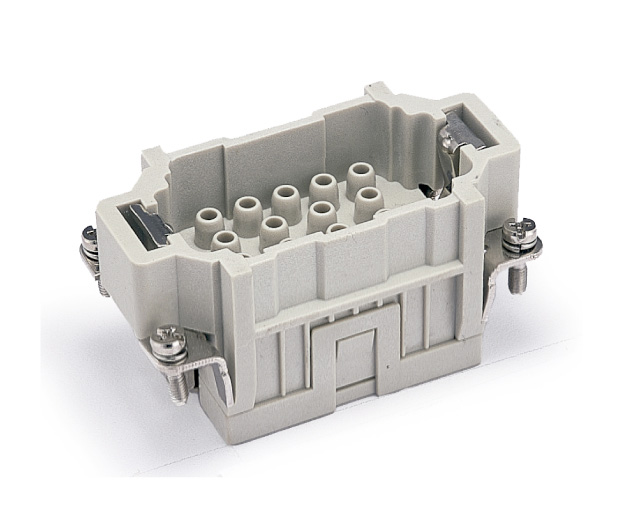

Product column： Rectangular Connectors >>Inserts >>HEE insert series

Connection type:Crimp connection,Male/female:Male,Specifications:10B,Number of connector contacts:18,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

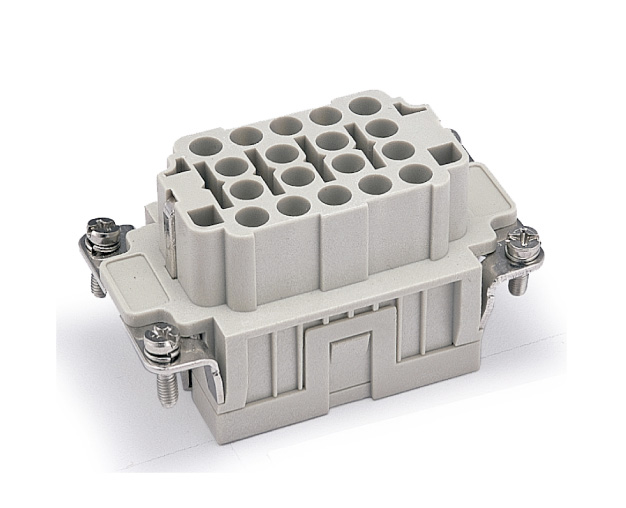

Product column： Rectangular Connectors >>Inserts >>HEE insert series

Connection type:Crimp connection,Male/female:Female,Specifications:10B,Number of connector contacts:18,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

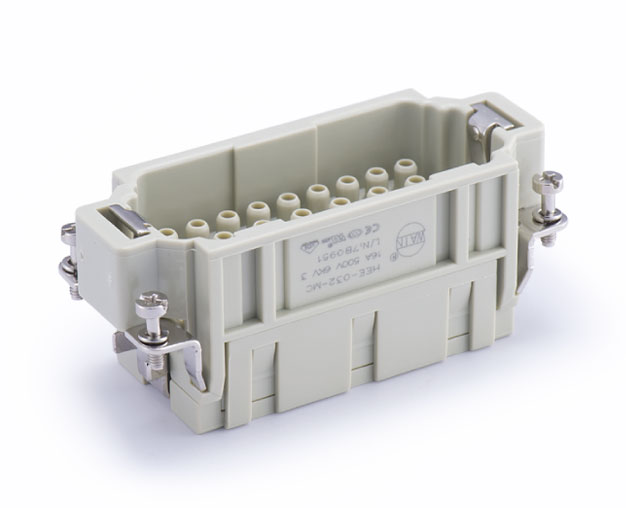

Product column： Rectangular Connectors >>Inserts >>HEE insert series

Connection type:Crimp connection,Male/female:Male,Specifications:16B|32B,Number of connector contacts:32,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

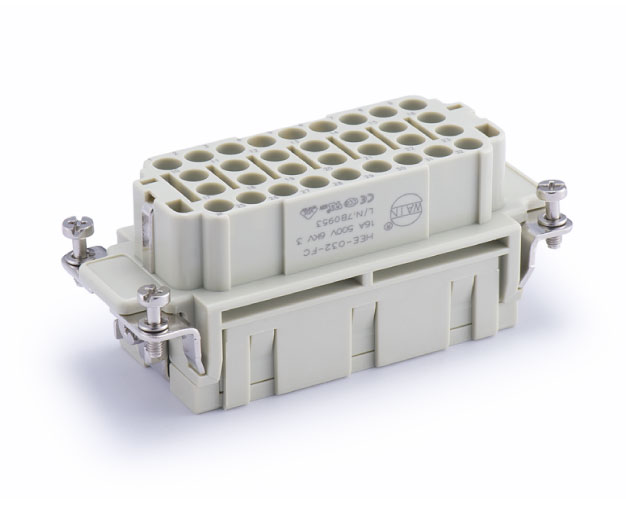

Product column： Rectangular Connectors >>Inserts >>HEE insert series

Connection type:Crimp connection,Male/female:Female,Specifications:16B|32B,Number of connector contacts:32,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG
