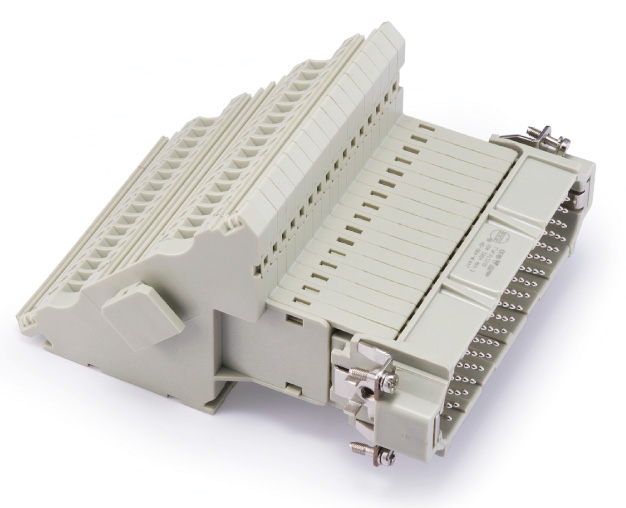

HD-064-M.AV.L
HD-064-M.AV.L

Model： HD-064-M.AV.L

Order No： 125 064 011 0101

Do you need to order crimp contacts separately： No

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Class of pollution

    3

  • Series

    HD AV insert series

  • Connection type

    Screw connection

  • Male/female

    Male

  • Specifications

    24B

    48B

  • Number of connector contacts

    64

  • Grounding contacts

    Yes

  • Rated current

    10A

  • Rated voltage

    250V

  • Rated pulse voltage

    4KV

  • Class of pollution

    3

  • Rated voltage as per UL/CSA

    600V

  • Insulation resistance

    ≥10¹ºΩ

  • Working temperature

    -40℃...+125℃

  • Mating cycles

    ≥500

  • Inserts material

    Polycarbonate

  • Inserts color

    RAL 7032 (light gray)

  • Flame retardant rating as per UL94

    V0

  • Contact material

    Copper alloy

  • Bonding side

    Silver-plated

  • Connection side

    Tin-plated

  • Contact resistance

    ≤10mΩ

  • Tightening/testing torque

    0.5Nm

  • Standard

    DIN EN 60 664

    DIN EN 61984

Downloads
2D Drawings
3D Models
