Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

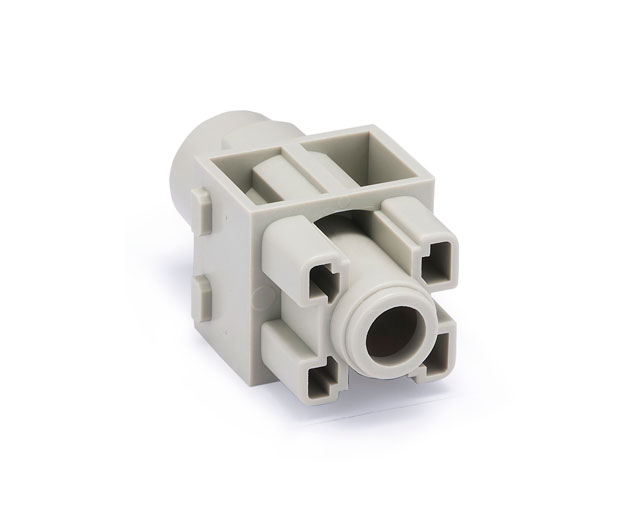

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:1,Rated current:200A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):25-70mm²,Wire gauge (AWG):NA

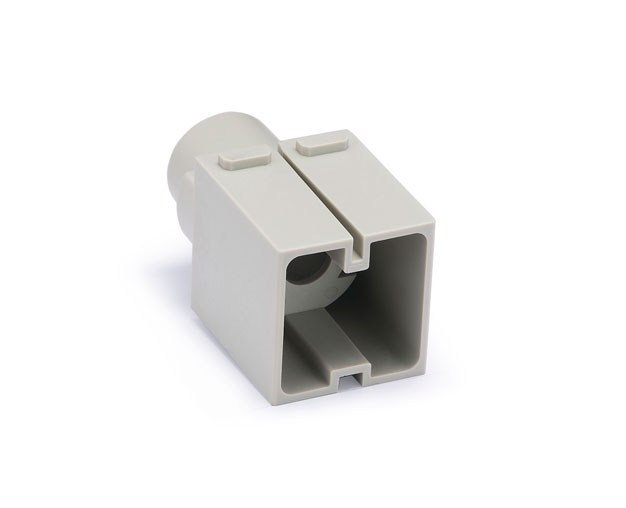

Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:1,Rated current:200A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):25-70mm²,Wire gauge (AWG):NA
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Data transmission module

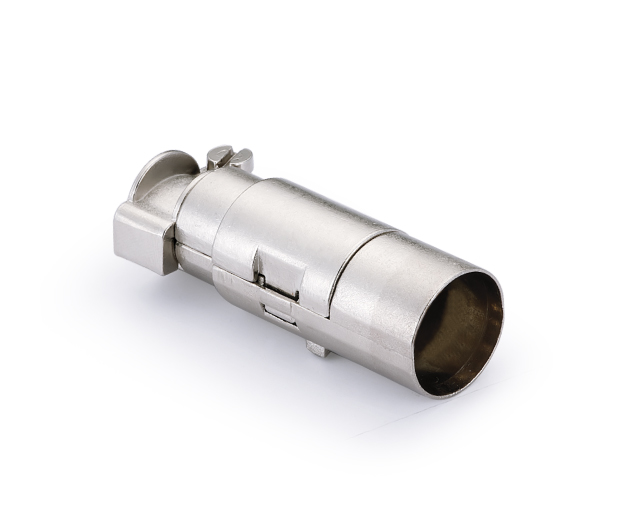

Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:1,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Zinc alloy

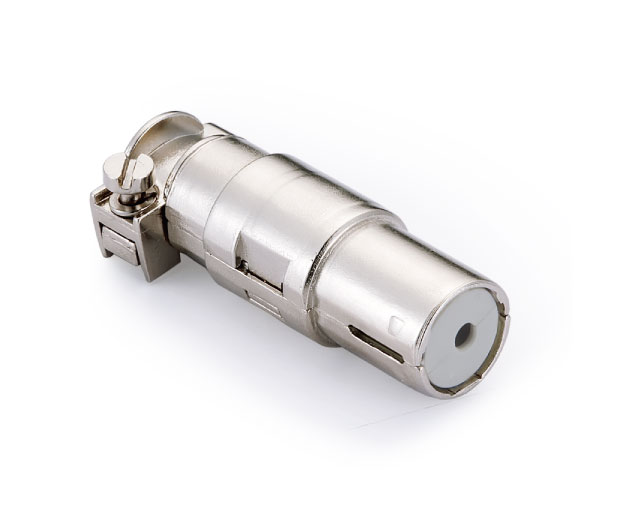

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:1,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Zinc alloy

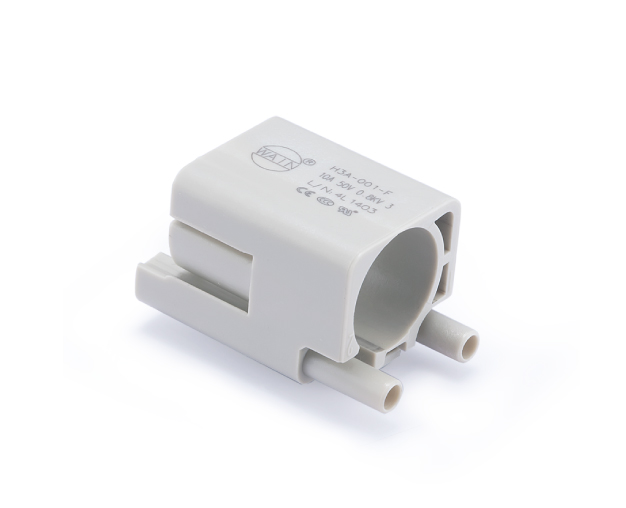

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Specifications:,Number of connector contacts:1+shield,Rated current:10A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Bayonet range:,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

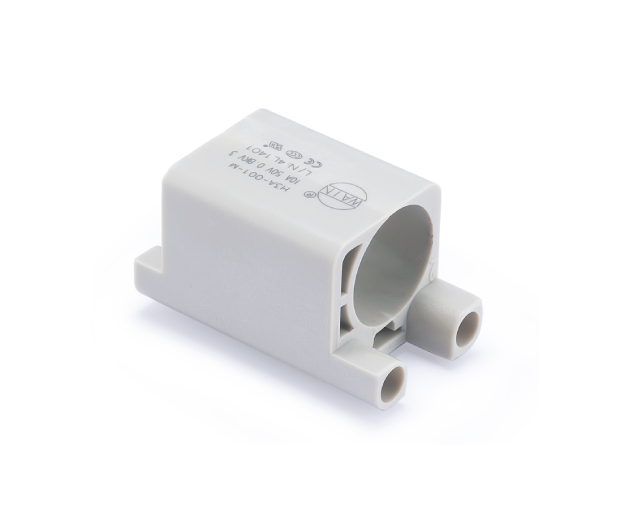

Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Specifications:,Number of connector contacts:1+shield,Rated current:10A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Bayonet range:,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

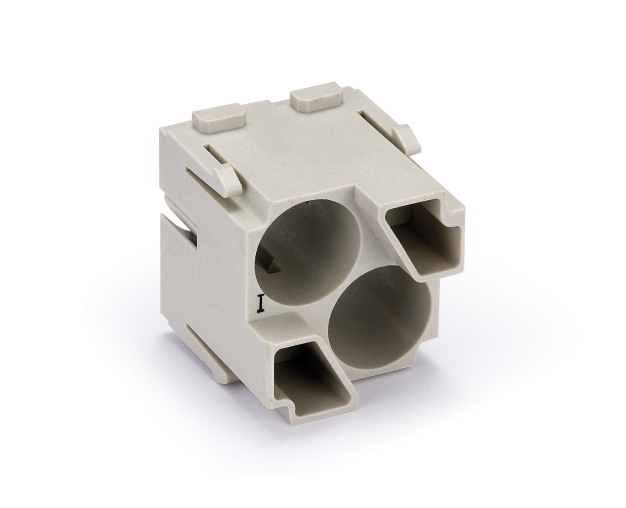

Contact material:Zinc alloy,Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:2,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate

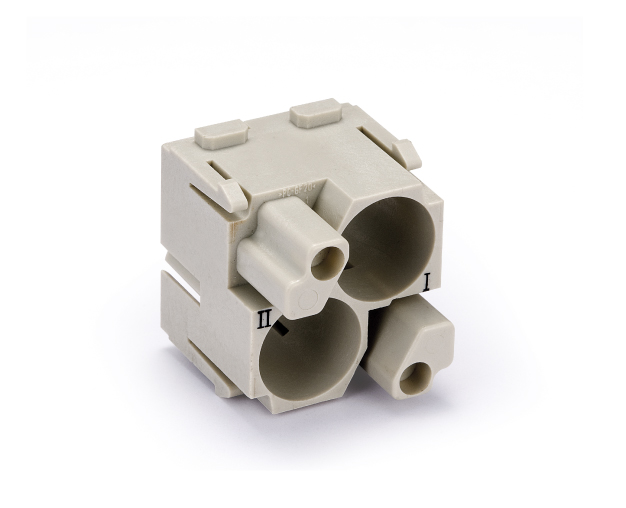

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:2,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Zinc alloy
