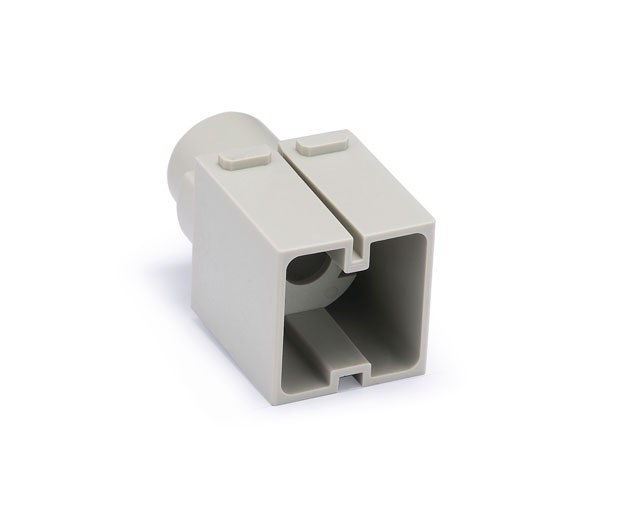

H2MK-001-MC
H2MK-001-MC

Model： H2MK-001-MC

Order No： 129 001 010 0101

Do you need to order crimp contacts separately： Yes

Suitable for the shell of the insert housing

Pin suitable for the core body

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Series

    HM modular insert series

  • Module size

    Dual module

  • Connection type

    Crimp connection

  • Male/female

    Male

  • Number of connector contacts

    1

  • Rated current

    200A

  • Rated voltage

    1000V

  • Rated pulse voltage

    8KV

  • Class of pollution

    3

  • Insulation resistance

    ≥10¹ºΩ

  • Working temperature

    -40℃...+125℃

  • Mating cycles

    ≥500

  • Inserts material

    Polycarbonate

  • Inserts color

    RAL 7032 (light gray)

  • Flame retardant rating as per UL94

    V0

  • Contact material

    Copper alloy

  • Surface treatment

    Silver-plated

  • Contact resistance

    ≤0.3mΩ

  • Wire gauge (mm²)

    25-70mm²

  • Maximum cable diameter

    18mm

  • Stripping length

    22.5mm

  • Standard

    DIN EN 60664

    DIN EN 61984
