Regular high-voltage inserts, suitable for high-voltage applications
830V/16A
Up to 32 contacts (spaced)
Multiple connection options include screw, crimp, and spring
Product column： Rectangular Connectors >>Inserts >>HVE insert series

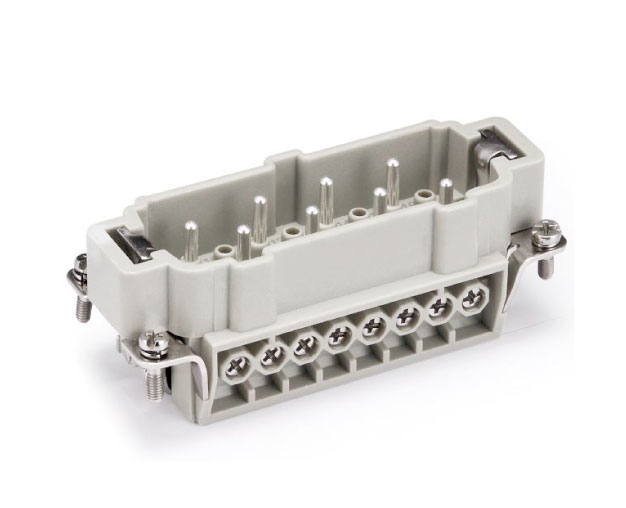

Connection type:Screw connection,Male/female:Male,Specifications:16B|32B,Number of connector contacts:6+2 (two contacts for high voltage safety),Rated current:16A,Rated voltage:830V,Wire gauge (mm²):0.75-2.5mm²,Wire gauge (AWG):18-14 AWG

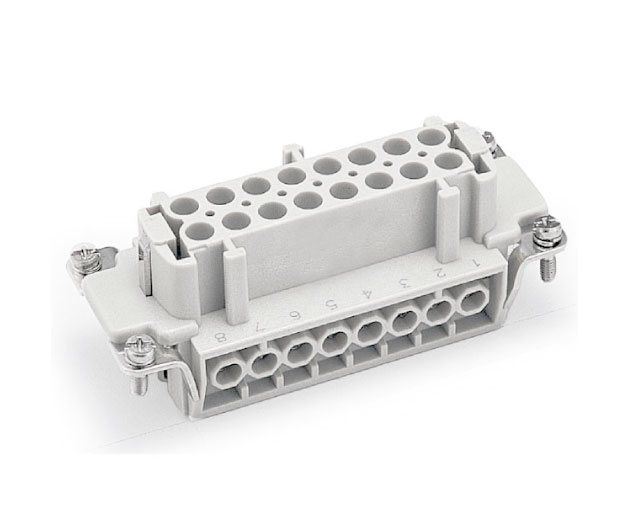

Connection type:Screw connection,Male/female:Female,Specifications:16B|32B,Number of connector contacts:6+2 (two contacts for high voltage safety),Rated current:16A,Rated voltage:830V,Wire gauge (mm²):0.75-2.5mm²,Wire gauge (AWG):18-14 AWG

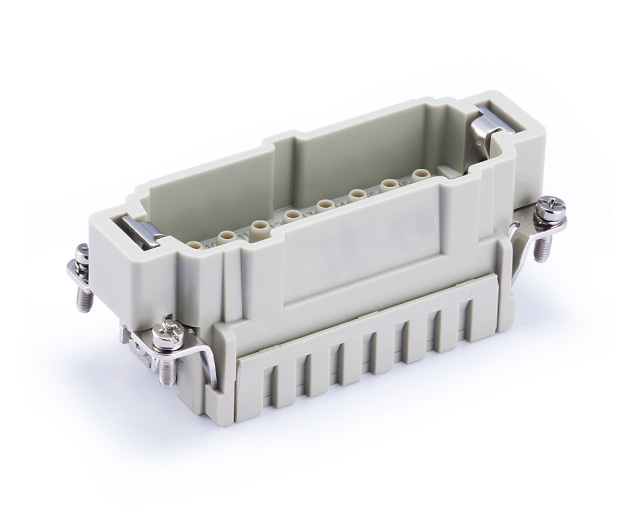

Connection type:Crimp connection,Male/female:Male,Specifications:16B|32B,Number of connector contacts:6+2 (two contacts for high voltage safety),Rated current:16A,Rated voltage:830V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG
Connection type:Crimp connection,Male/female:Female,Specifications:16B|32B,Number of connector contacts:6+2 (two contacts for high voltage safety),Rated current:16A,Rated voltage:830V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

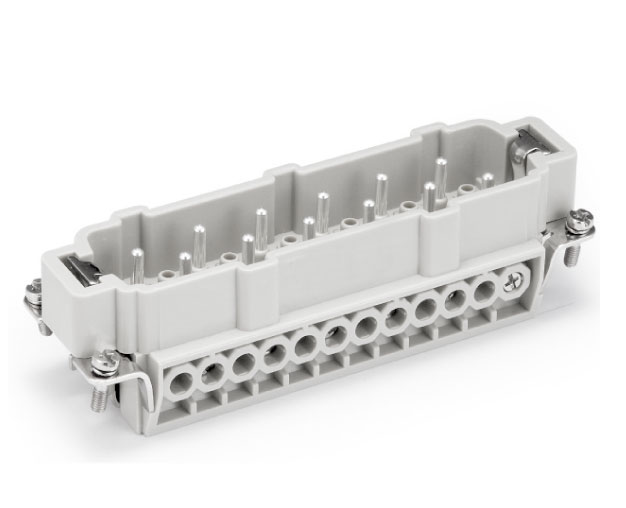

Connection type:Screw connection,Male/female:Male,Specifications:24B|48B,Number of connector contacts:10+2 (two contacts for high voltage safety),Rated current:16A,Rated voltage:830V,Wire gauge (mm²):0.75-2.5mm²,Wire gauge (AWG):18-14 AWG

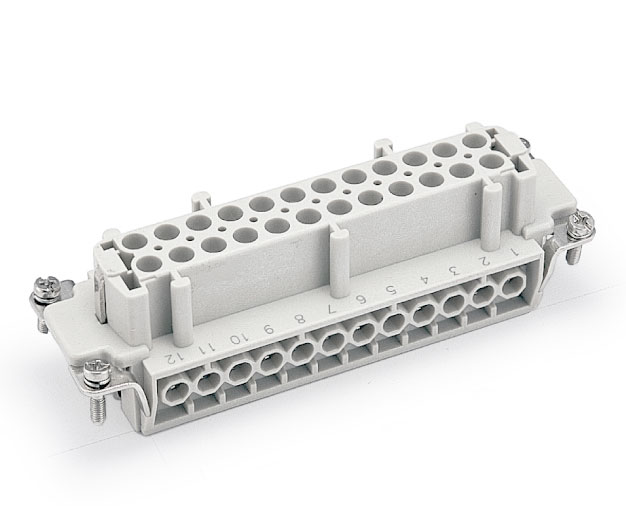

Connection type:Screw connection,Male/female:Female,Specifications:24B|48B,Number of connector contacts:10+2 (two contacts for high voltage safety),Rated current:16A,Rated voltage:830V,Wire gauge (mm²):0.75-2.5mm²,Wire gauge (AWG):18-14 AWG

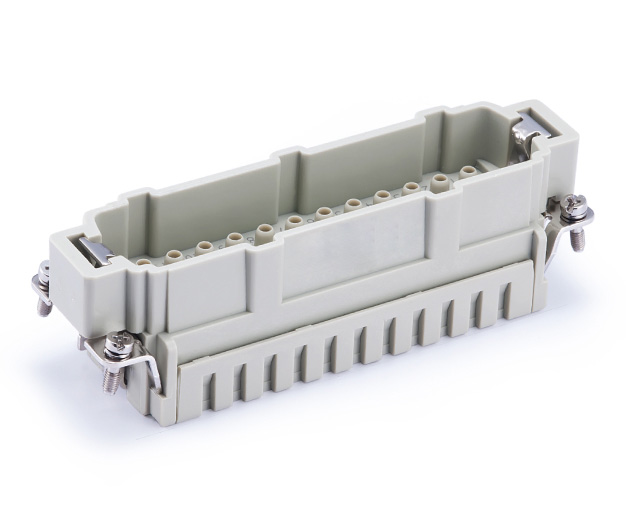

Connection type:Crimp connection,Male/female:Male,Specifications:24B|48B,Number of connector contacts:10+2 (two contacts for high voltage safety),Rated current:16A,Rated voltage:830V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

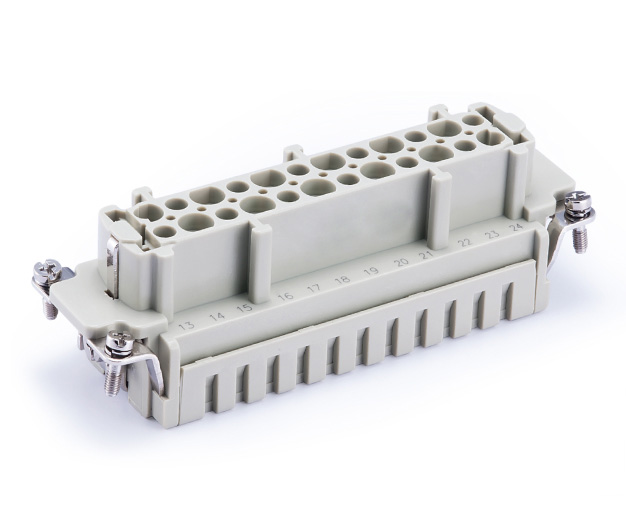

Connection type:Crimp connection,Male/female:Female,Specifications:24B|48B,Number of connector contacts:10+2 (two contacts for high voltage safety),Rated current:16A,Rated voltage:830V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG
