Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

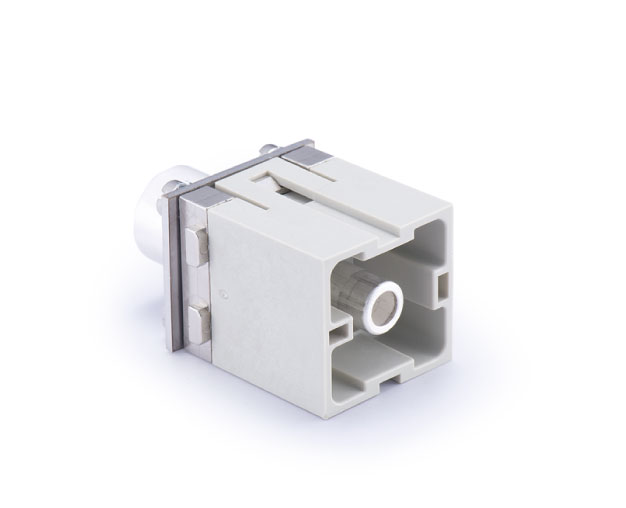

Module size:Dual module,Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:1,Rated current:200A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):40-70mm²,Wire gauge (AWG):NA,Tightening/testing torque:50mm²→9Nm|70mm²→10Nm
Module size:Dual module,Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:1,Rated current:200A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):25-40mm²,Wire gauge (AWG):NA,Tightening/testing torque:25mm²→8Nm|35mm²→8Nm

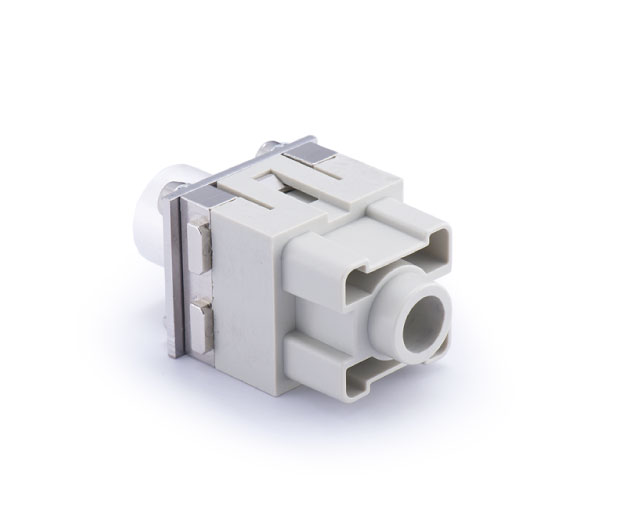

Module size:Dual module,Connection type:Axial bolt connection,Male/female:Female,Number of connector contacts:1,Rated current:200A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):25-40mm²,Wire gauge (AWG):NA,Tightening/testing torque:25mm²→8Nm|35mm²→8Nm
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Signal module
Module size:Single module,Male/female:Female,Number of connector contacts:4,Rated current:1A,Rated voltage:50V

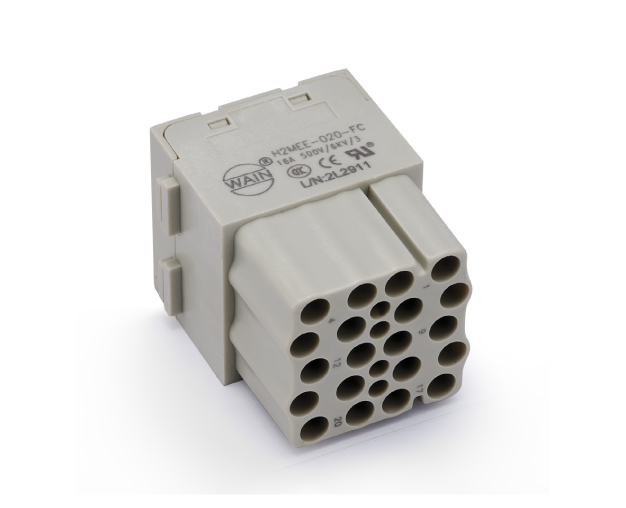

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:20,Rated current:16A,Rated voltage:500V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG

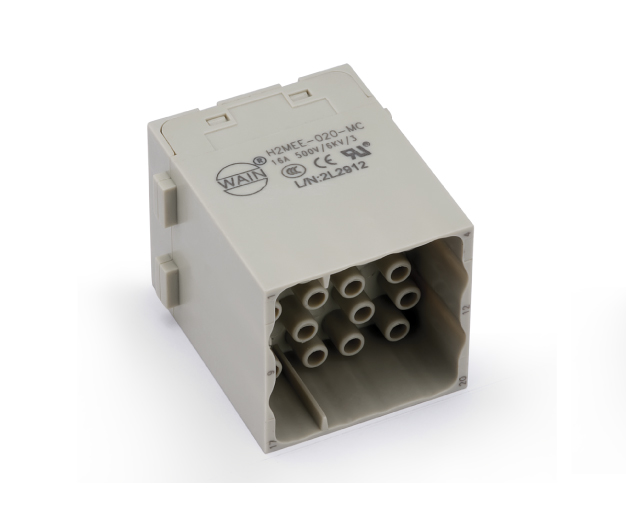

Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:20,Rated current:16A,Rated voltage:500V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG

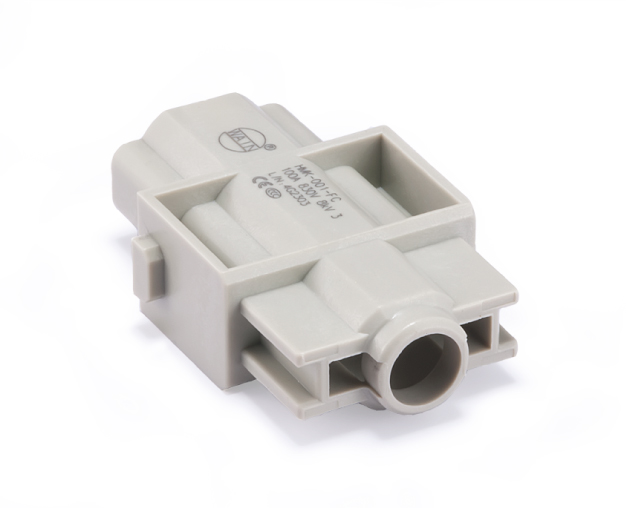

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:1,Rated current:100A,Rated voltage:830V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):10-35mm²,Wire gauge (AWG):NA

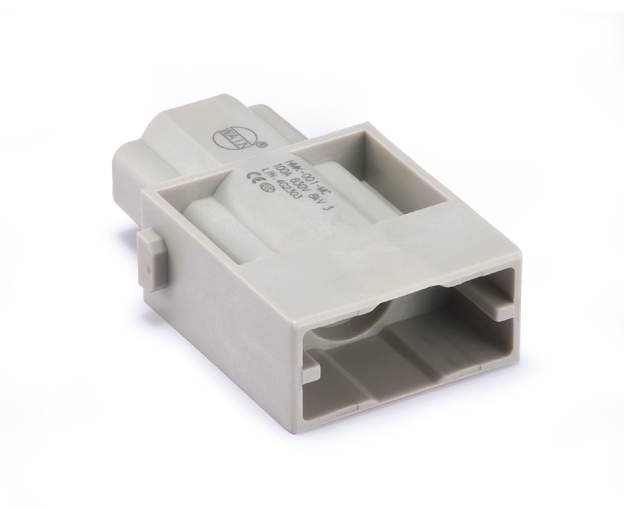

Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:1,Rated current:100A,Rated voltage:830V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):10-35mm²,Wire gauge (AWG):NA
