Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Other modules
Male/female:Female,Inserts material:Polycarbonate
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Signal module
Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:2×4+shield,Rated current:10A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Zinc alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG,Bayonet range:5-12 mm
Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:2×4+shield,Rated current:10A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Zinc alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG,Bayonet range:5-12 mm
Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:42,Rated current:10A,Rated voltage:150V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:42,Rated current:10A,Rated voltage:150V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

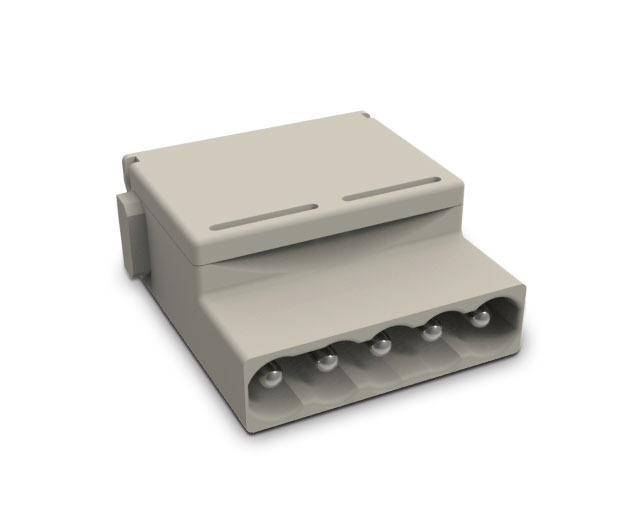

Module size:Single module,Connection type:Screw connection,Male/female:Male,Number of connector contacts:5,Rated current:16A,Rated voltage:230V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-14 AWG

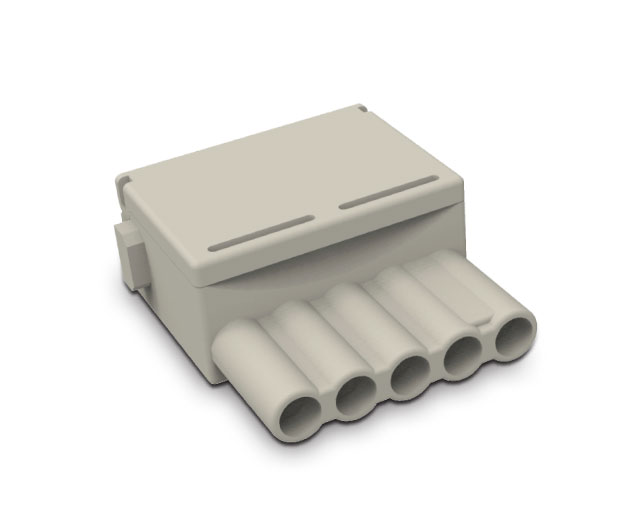

Wire gauge (AWG):20-14 AWG,Module size:Single module,Connection type:Screw connection,Male/female:Female,Number of connector contacts:5,Rated current:16A,Rated voltage:230V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.5-2.5mm²

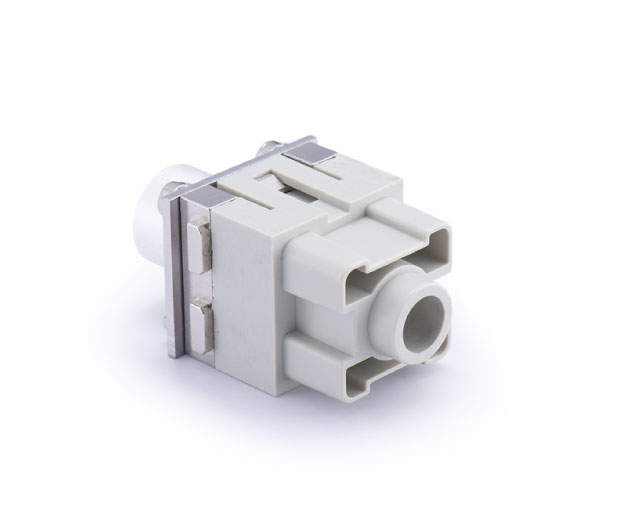

Module size:Dual module,Connection type:Axial bolt connection,Male/female:Female,Number of connector contacts:1,Rated current:200A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):40-70mm²,Wire gauge (AWG):NA,Tightening/testing torque:50mm²→9Nm|70mm²→10Nm
