Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A

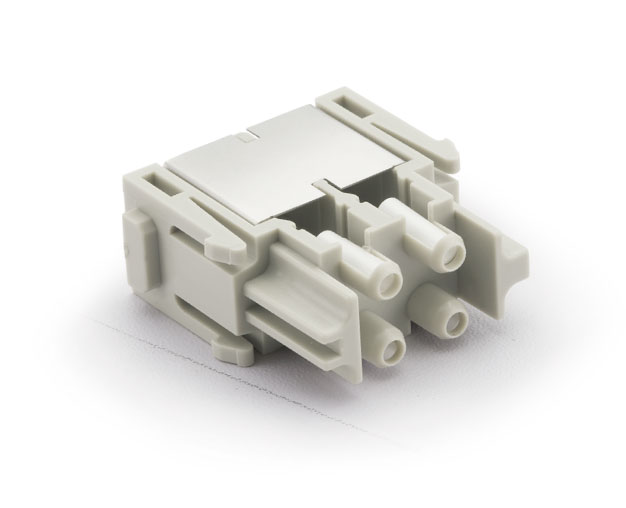

Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Fiber optic module
Number of connector contacts:4,Insertion loss:,Inserts material:Polycarbonate,Male/female:Female
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Signal module

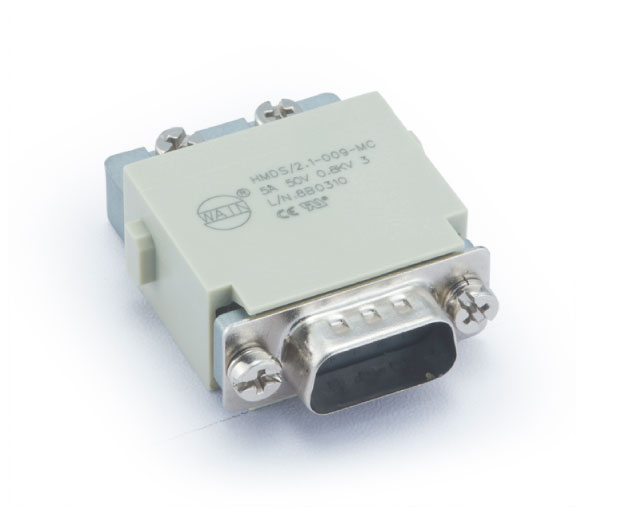

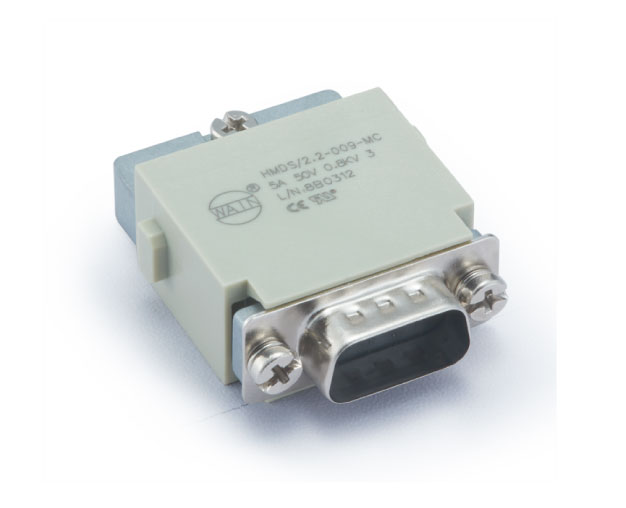

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:9,Rated current:5A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.09-0.82mm²,Wire gauge (AWG):28-18 AWG

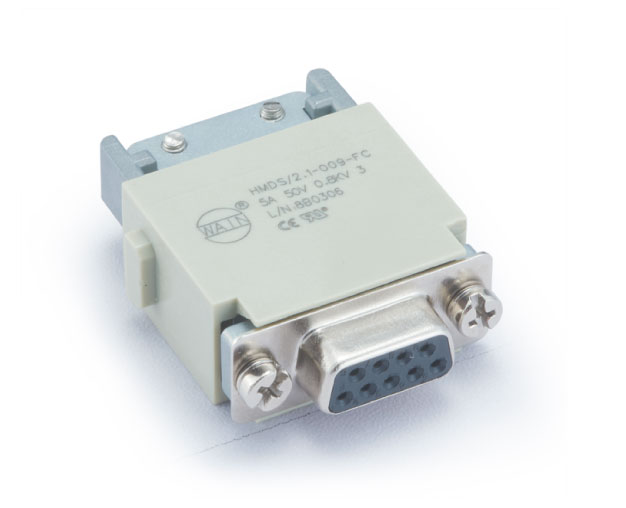

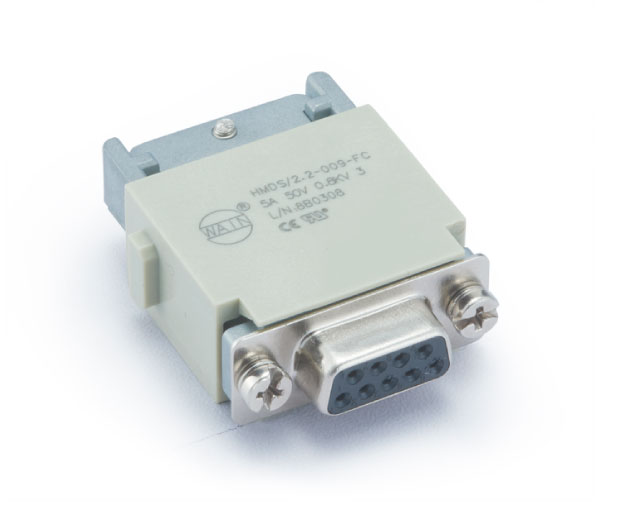

Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:9,Rated current:5A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.09-0.82mm²,Wire gauge (AWG):28-18 AWG
Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:8+shield,Rated current:5A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Zinc alloy,Wire gauge (mm²):0.09-0.52mm²,Wire gauge (AWG):26-20 AWG,Bayonet range:5-12 mm
Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Zinc alloy,Wire gauge (mm²):0.09-0.52mm²,Wire gauge (AWG):26-20 AWG,Bayonet range:5-12 mm,Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:8+shield,Rated current:5A,Rated voltage:50V
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Other modules
Male/female:Male,Inserts material:Polycarbonate
