Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Signal module
Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:24,Rated current:4A,Rated voltage:32V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Zinc alloy,Wire gauge (mm²):0.09-0.52mm²,Wire gauge (AWG):28-20 AWG
Inserts material:Polycarbonate,Contact material:Zinc alloy,Wire gauge (mm²):0.09-0.52mm²,Wire gauge (AWG):28-20 AWG,Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:24,Rated current:4A,Rated voltage:32V,Insulation resistance:≥10¹ºΩ
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Other modules
Male/female:Male,Number of connector contacts:1,Insulation resistance:≥10¹ºΩ,Material:Polycarbonate
Male/female:Female,Number of connector contacts:1,Insulation resistance:≥10¹ºΩ,Material:Polycarbonate

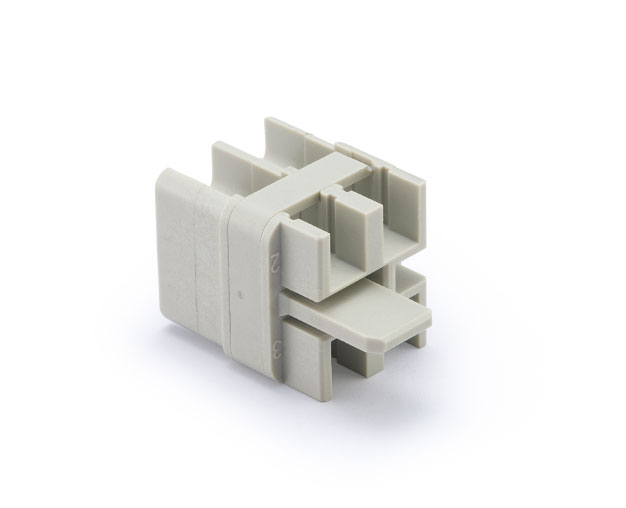

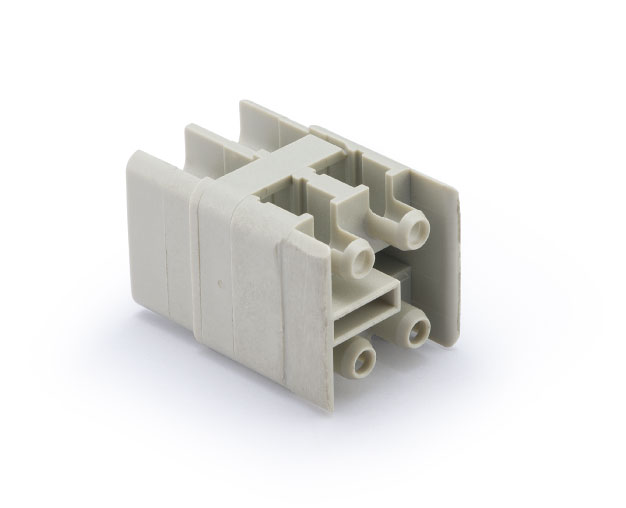

Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Pneumatic module
Module size:Single module,Connection type:Tube connection,Number of connector contacts:3,Inserts material:Polycarbonate,Contact material:polyformaldehyde

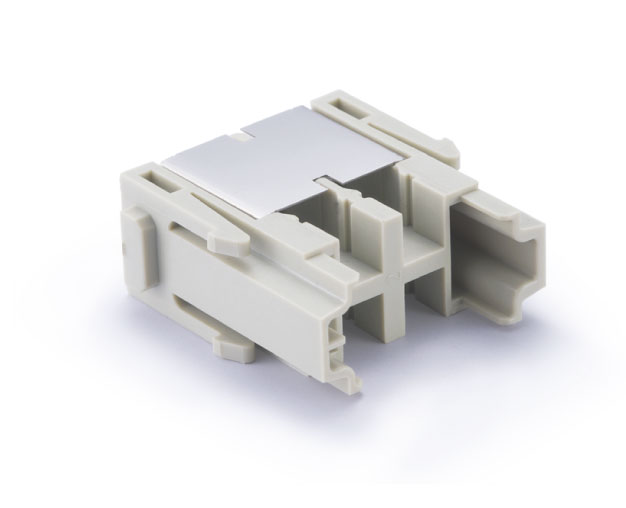

Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Fiber optic module
Module size:Single module,Number of connector contacts:4,Insertion loss:<0.5dB,Material:Polycarbonate
Module size:Single module,Number of connector contacts:4,Material:Polycarbonate,Insertion loss:<0.5dB
Number of connector contacts:4,Insertion loss:,Inserts material:Polycarbonate,Male/female:Male
