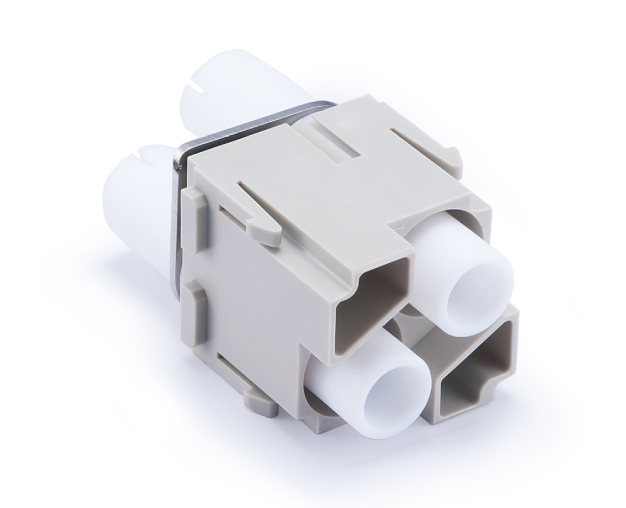

Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:2,Rated current:40A,Rated voltage:2900V/5000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-10mm²,Wire gauge (AWG):16-8 AWG

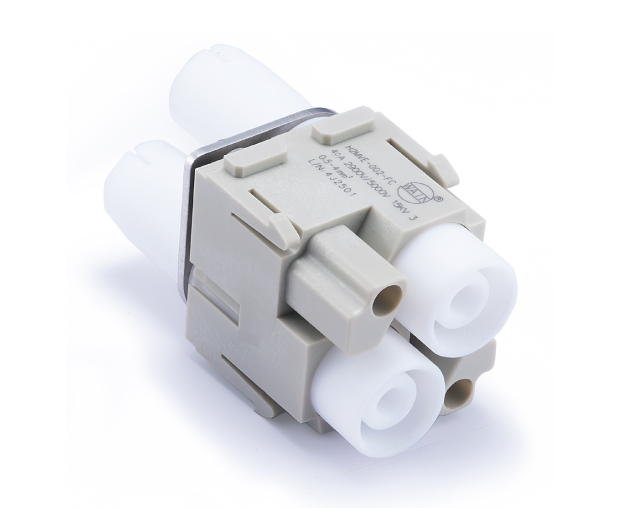

Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:2,Rated current:40A,Rated voltage:2900V/5000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-10mm²,Wire gauge (AWG):16-8 AWG

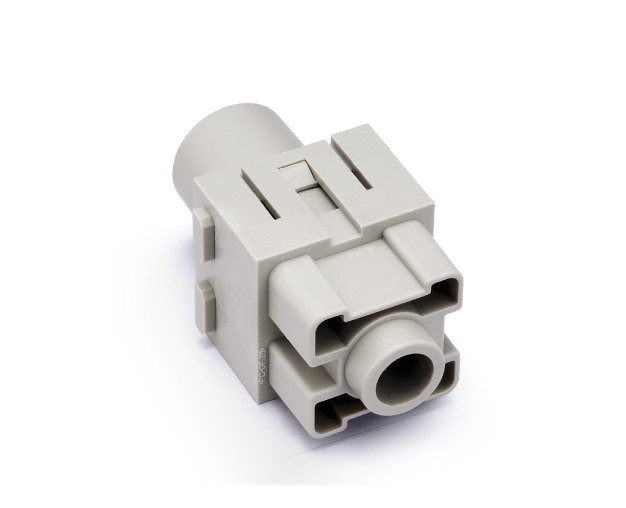

Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

Module size:Dual module,Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:1,Rated current:200A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):40-70mm²,Wire gauge (AWG):2-0 AWG,Tightening/testing torque:50mm²→9Nm|70mm²→12Nm

Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

Module size:Dual module,Connection type:Axial bolt connection,Male/female:Female,Number of connector contacts:1,Rated current:200A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):40-70mm²,Wire gauge (AWG):2-0 AWG,Tightening/testing torque:50mm²→9Nm|70mm²→12Nm
