Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Pneumatic module

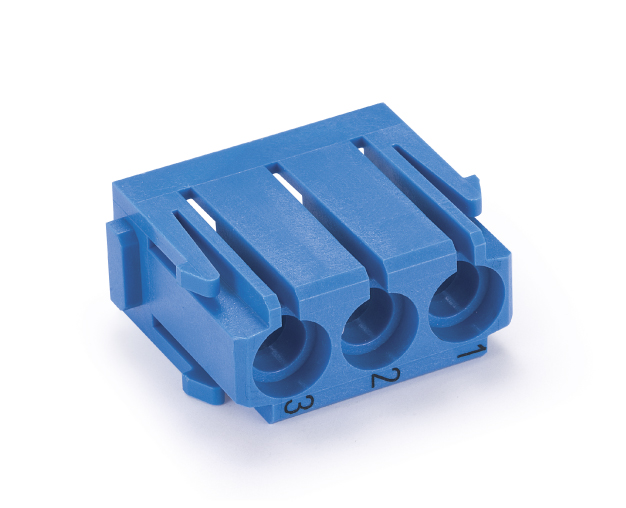

Module size:Single module,Connection type:Tube connection,Number of connector contacts:3,Inserts material:Polycarbonate,Contact material:polyformaldehyde
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

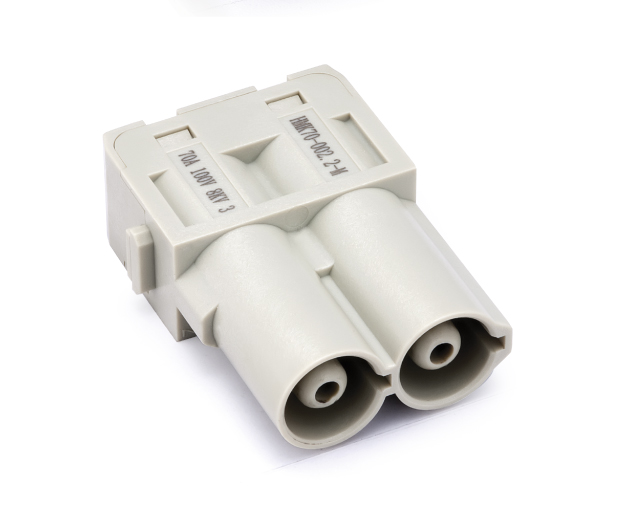

Module size:Single module,Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:2,Rated current:70A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):6-22mm²,Wire gauge (AWG):8-4 AWG,Tightening/testing torque:16mm²→4Nm|22mm²→5Nm

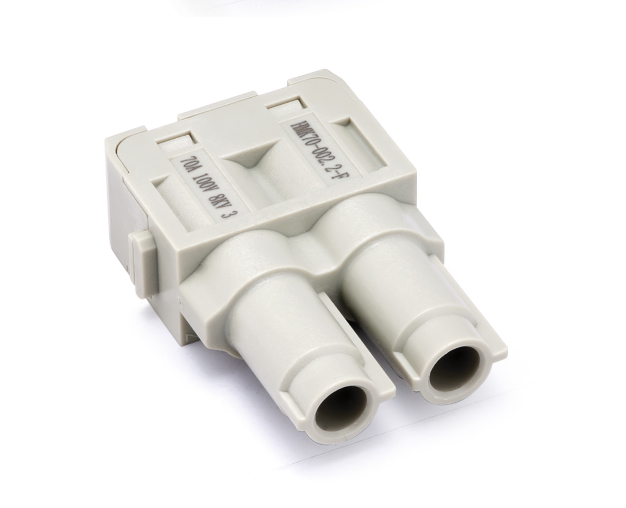

Module size:Single module,Connection type:Axial bolt connection,Male/female:Female,Number of connector contacts:2,Rated current:70A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):6-22mm²,Wire gauge (AWG):8-4 AWG,Tightening/testing torque:16mm²→4Nm|22mm²→5Nm

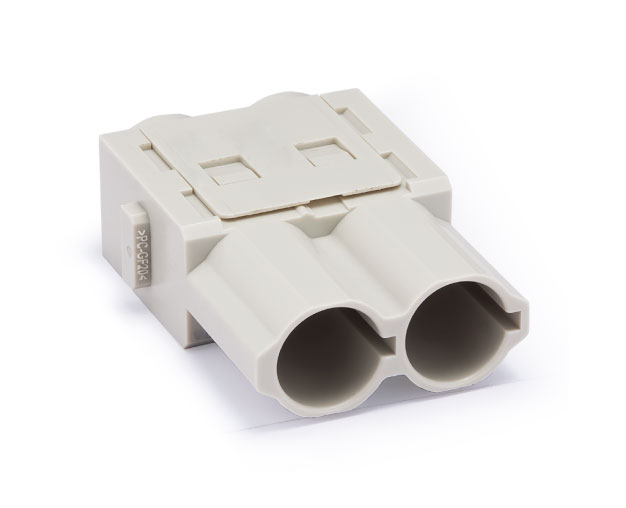

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:2,Rated current:70A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):10-25mm²,Wire gauge (AWG):NA

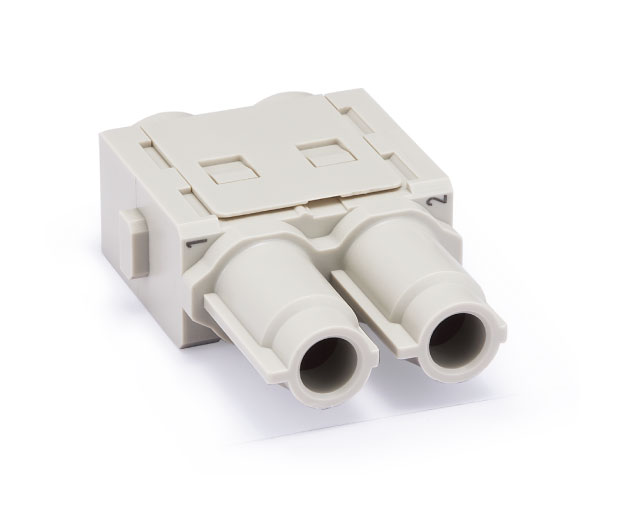

Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:2,Rated current:70A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):10-25mm²,Wire gauge (AWG):NA
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Signal module

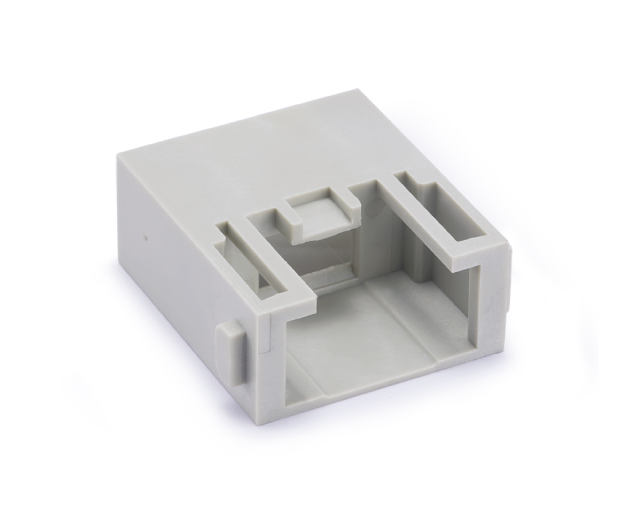

Module size:Single module,Male/female:Male,Number of connector contacts:8,Rated current:1A,Rated voltage:50V

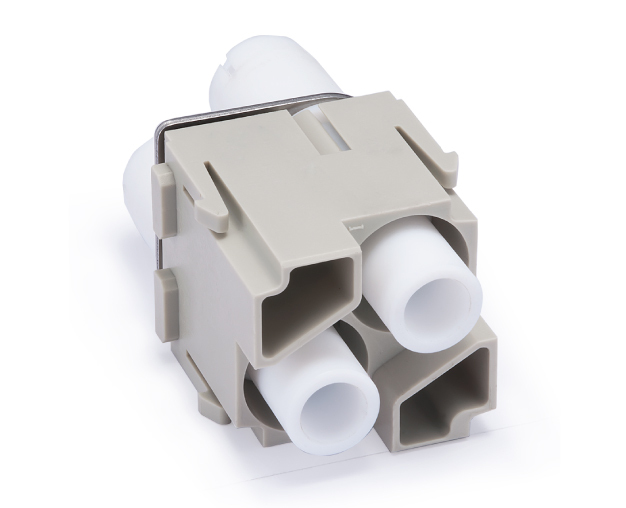

Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:2,Rated current:16A,Rated voltage:2900V/5000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-12 AWG

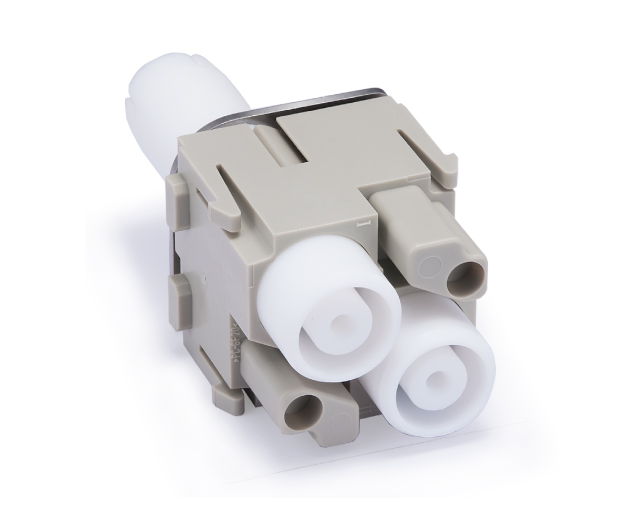

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:2,Rated current:16A,Rated voltage:2900V/5000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.5-4mm²,Wire gauge (AWG):20-12 AWG
