Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

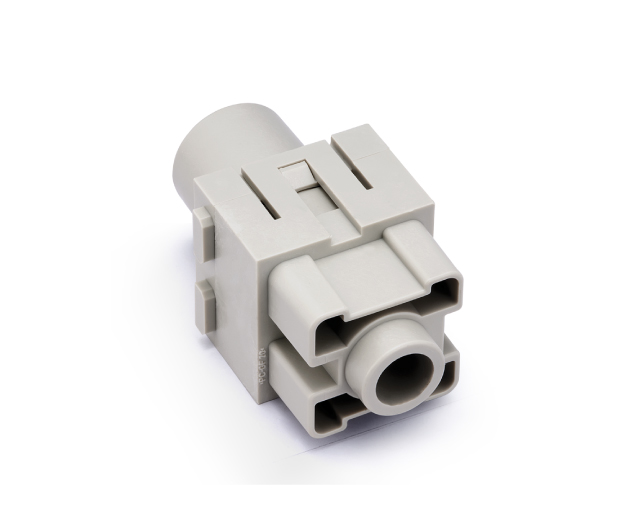

Module size:Dual module,Connection type:Axial bolt connection,Male/female:Female,Number of connector contacts:1,Rated current:200A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):25-70mm²,Wire gauge (AWG):2-0 AWG,Tightening/testing torque:25mm²→8Nm|35mm²→8Nm

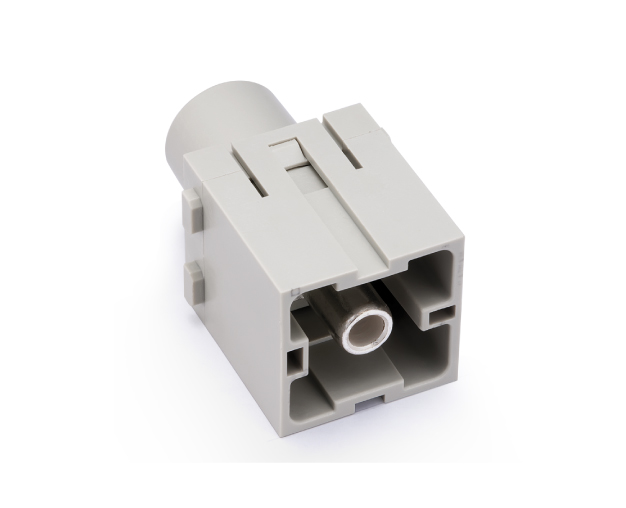

Module size:Dual module,Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:1,Rated current:200A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):25-70mm²,Wire gauge (AWG):2-0 AWG,Tightening/testing torque:25mm²→8Nm|35mm²→8Nm

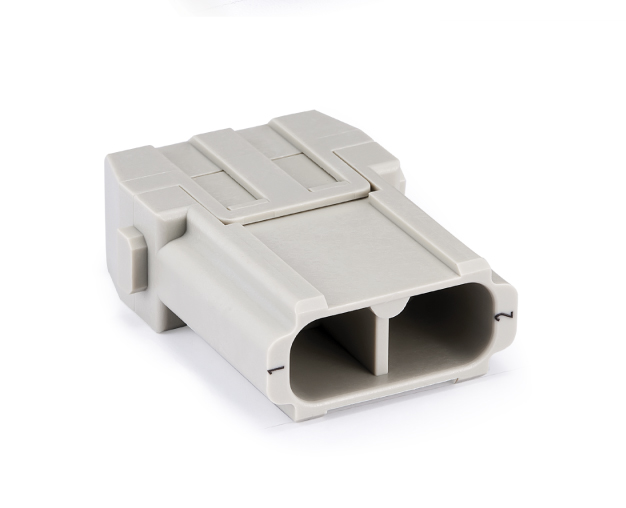

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:2,Rated current:40A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-10mm²,Wire gauge (AWG):16-8 AWG

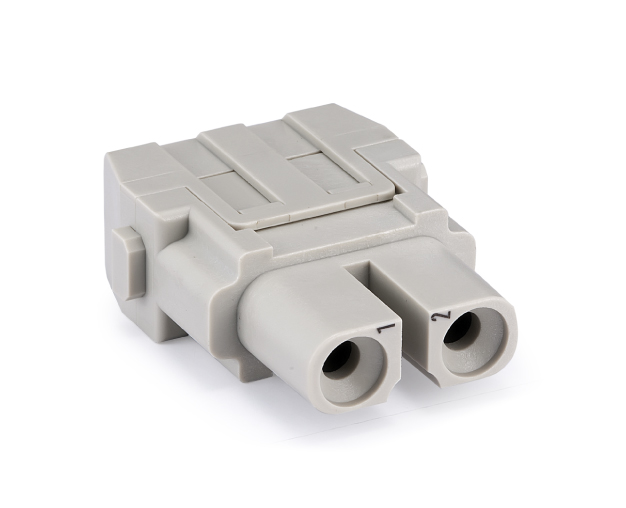

Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:2,Rated current:40A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-10mm²,Wire gauge (AWG):16-8 AWG
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Signal module
Module size:Single module,Male/female:Female,Number of connector contacts:8,Rated current:1A,Rated voltage:50V

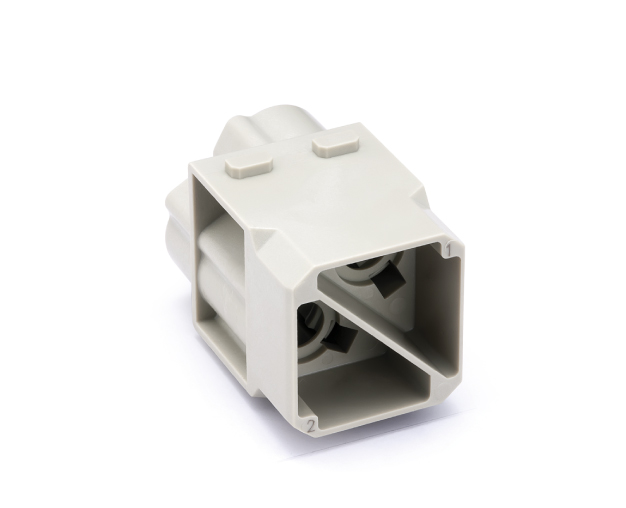

Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:2,Rated current:100A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):10-35mm²,Wire gauge (AWG):NA

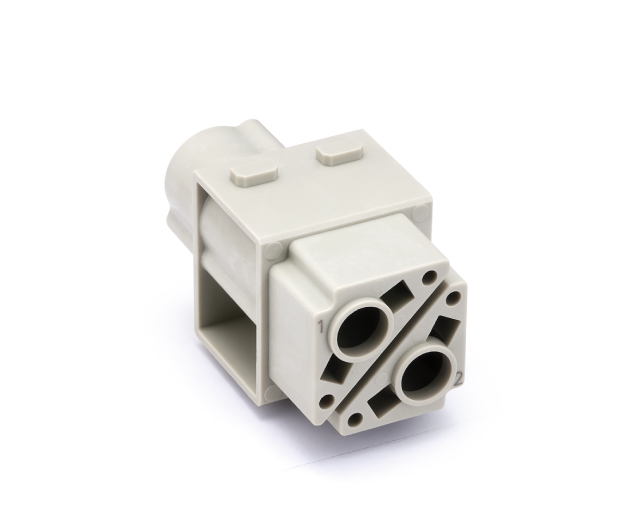

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:2,Rated current:100A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):10-35mm²,Wire gauge (AWG):NA
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Pneumatic module

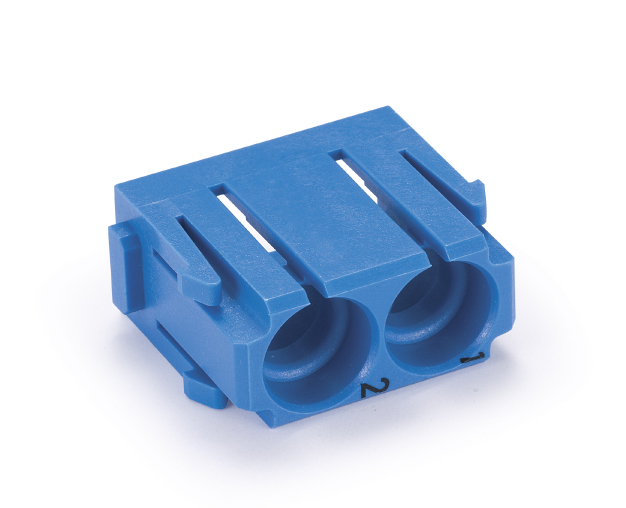

Module size:Single module,Connection type:Tube connection,Number of connector contacts:2,Inserts material:Polycarbonate,Contact material:polyformaldehyde
