Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Signal module

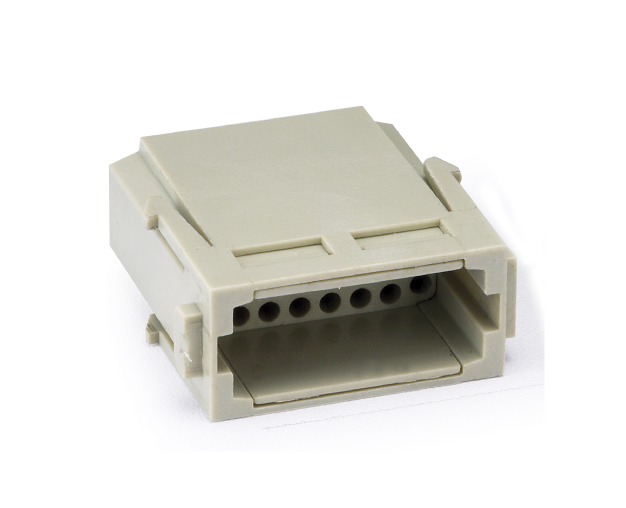

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:25,Rated current:4A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.09-0.52mm²,Wire gauge (AWG):28-20 AWG
Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:25,Rated current:4A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.09-0.52mm²,Wire gauge (AWG):28-20 AWG
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

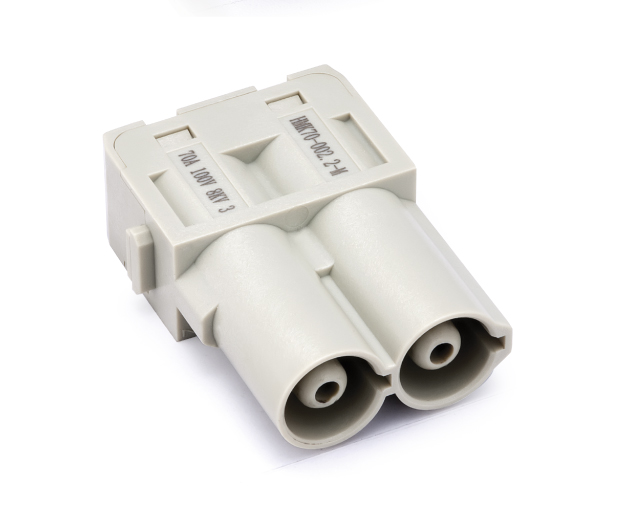

Module size:Single module,Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:2,Rated current:70A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):6-22mm²,Wire gauge (AWG):8-4 AWG,Tightening/testing torque:6mm²→2Nm|10mm²→3Nm|16mm²→4Nm

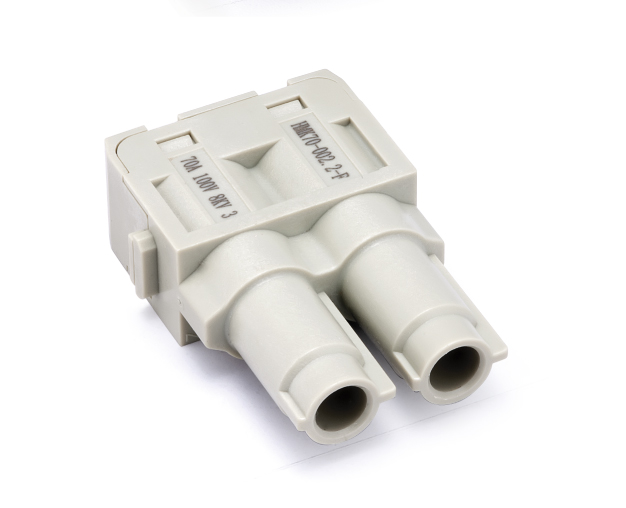

Male/female:Female,Number of connector contacts:2,Rated current:70A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):6-22mm²,Wire gauge (AWG):8-4 AWG,Tightening/testing torque:6mm²→2Nm|10mm²→3Nm|16mm²→4Nm,Module size:Single module,Connection type:Axial bolt connection

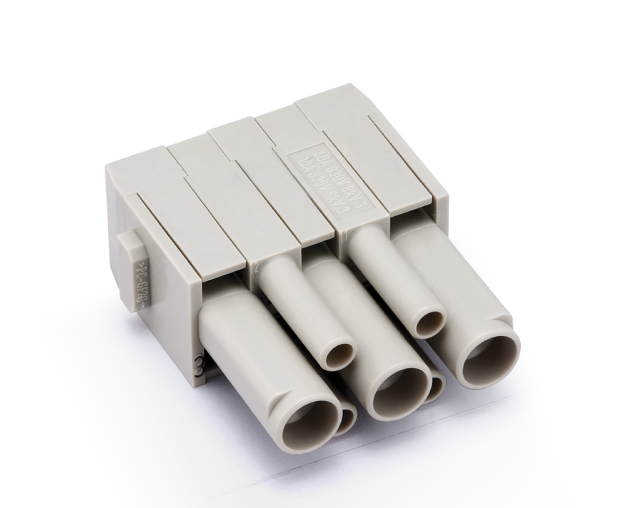

Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:3+4,Number of connector contacts:3,Rated current:40A,Rated voltage:830V,Number of connector contacts:4,Rated current:10A,Rated voltage:830V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-6mm²,Wire gauge (AWG):16-10 AWG,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

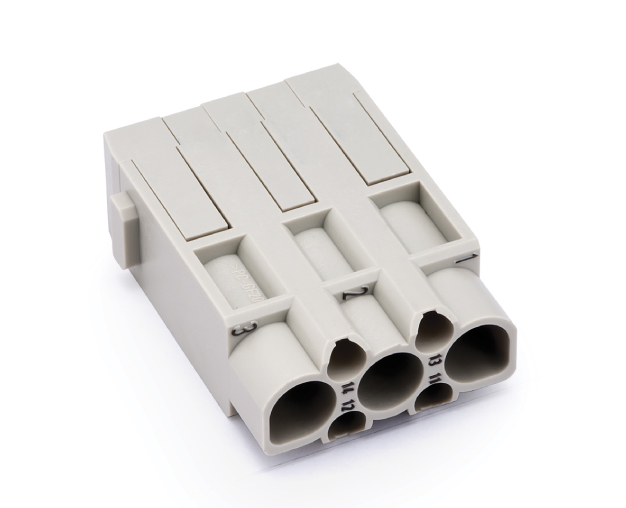

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:3+4,Number of connector contacts:3,Rated current:40A,Rated voltage:830V,Number of connector contacts:4,Rated current:10A,Rated voltage:830V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Wire gauge (mm²):1.5-6mm²,Wire gauge (AWG):16-10 AWG,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

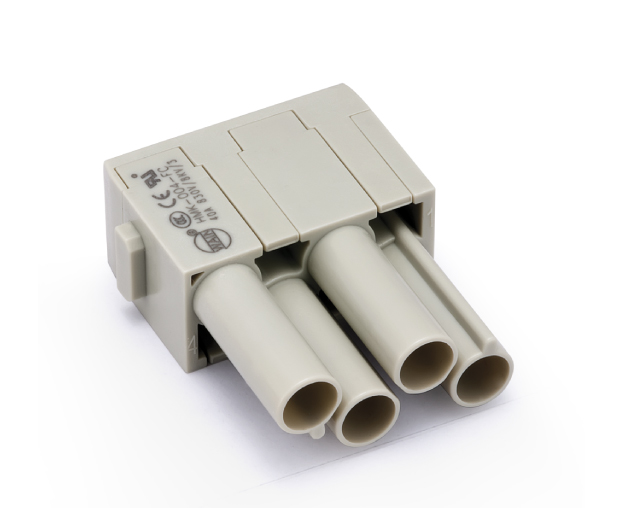

Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:4,Rated current:40A,Rated voltage:830V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-6mm²,Wire gauge (AWG):16-10 AWG

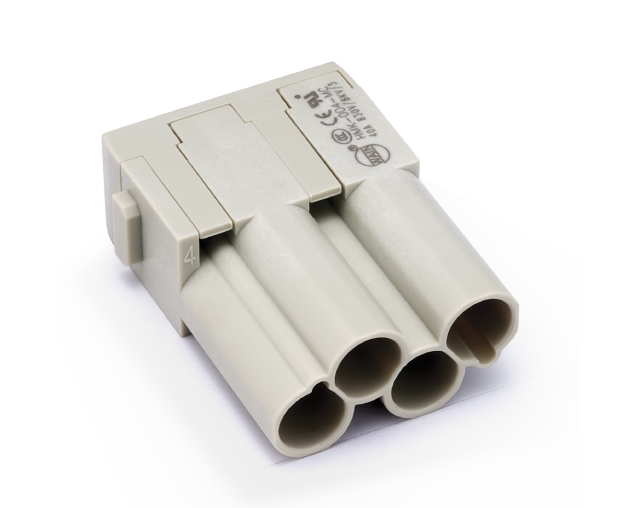

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:4,Rated current:40A,Rated voltage:830V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-6mm²,Wire gauge (AWG):16-10 AWG
