Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

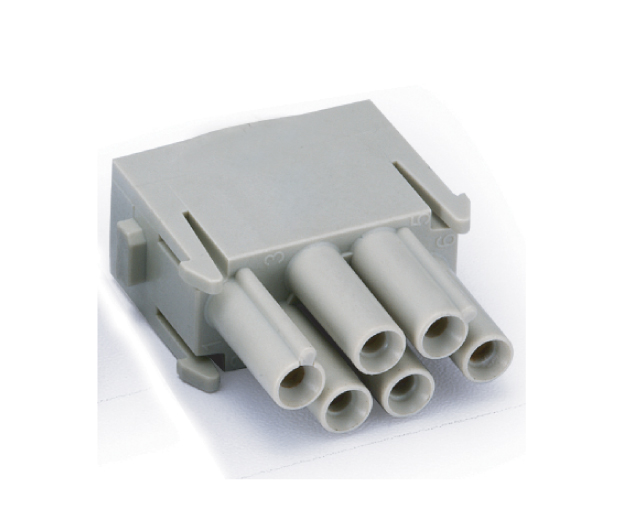

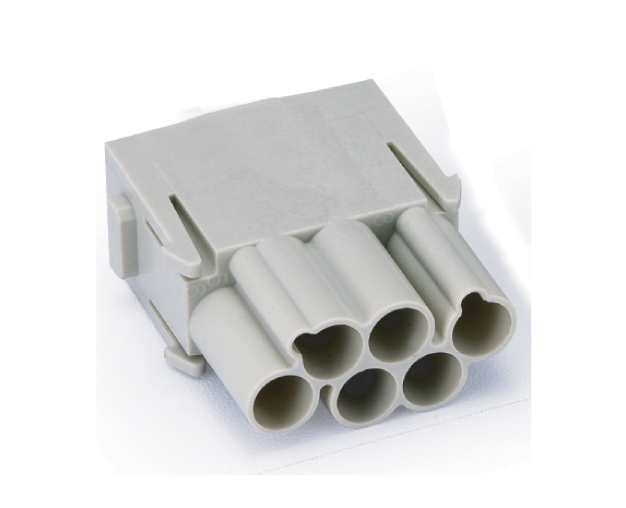

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:6,Rated current:16A,Rated voltage:830V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG
Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:6,Rated current:16A,Rated voltage:830V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG

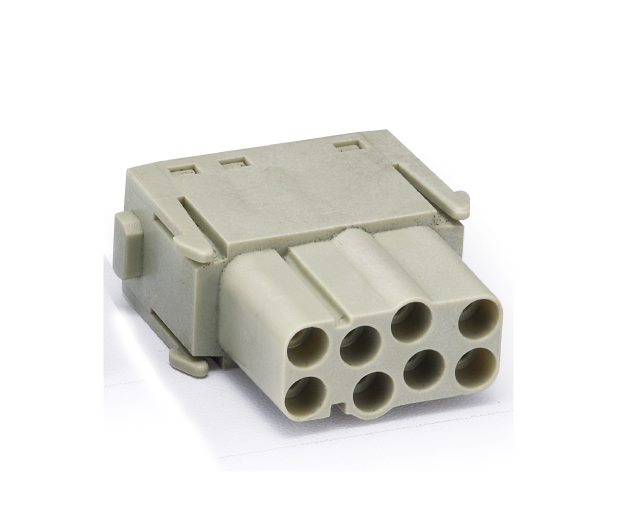

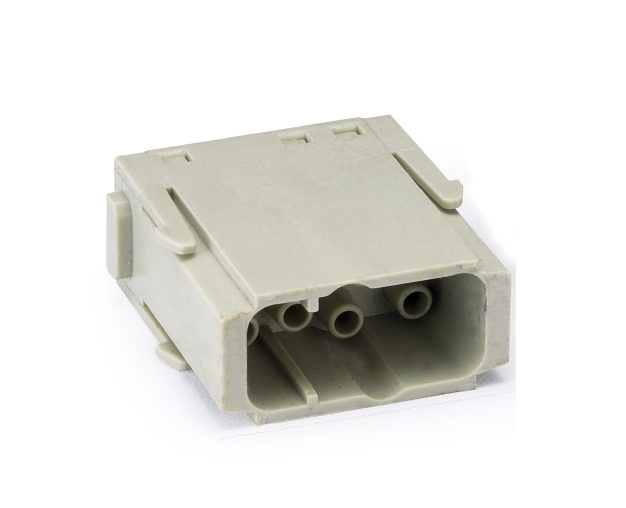

Rated current:16A,Rated voltage:400V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG,Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:8
Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:8,Rated current:16A,Rated voltage:400V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Signal module

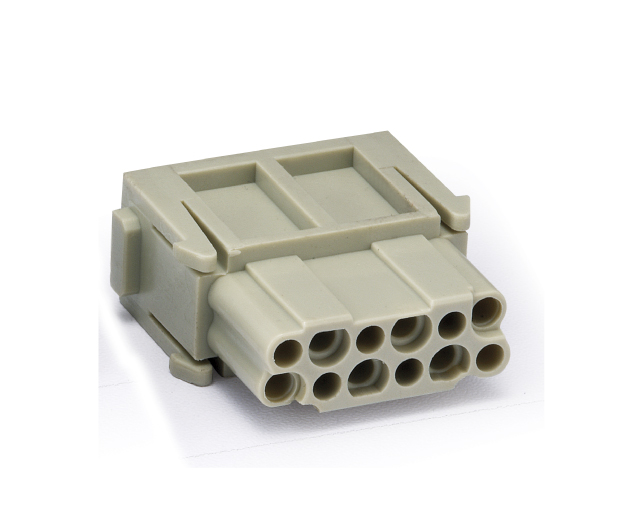

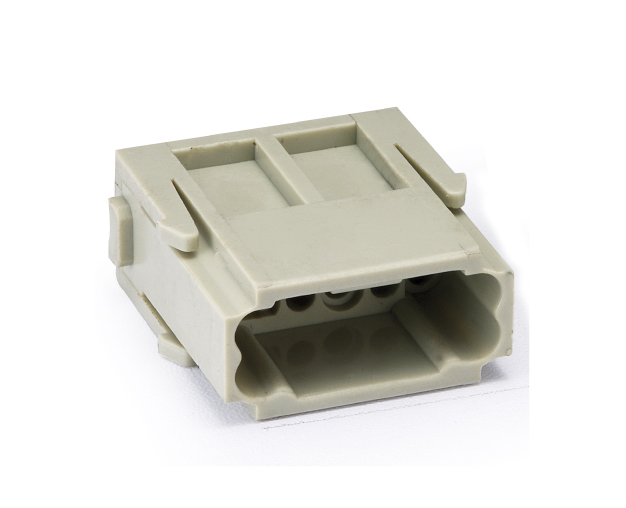

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:12,Rated current:10A,Rated voltage:250V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:12,Rated current:10A,Rated voltage:250V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

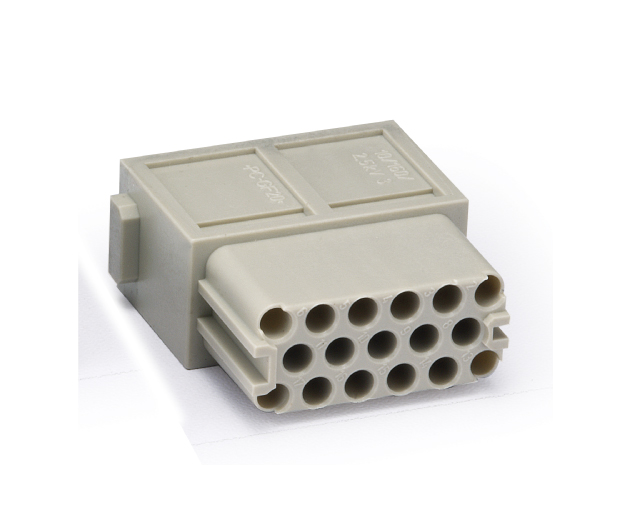

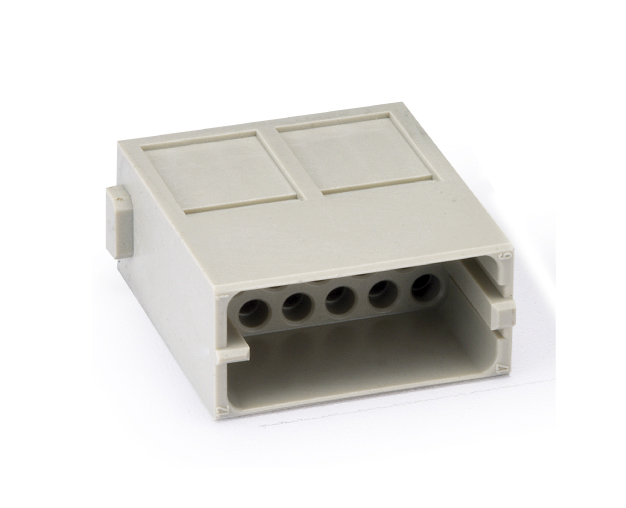

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:17,Rated current:10A,Rated voltage:160V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:17,Rated current:10A,Rated voltage:160V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
