Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

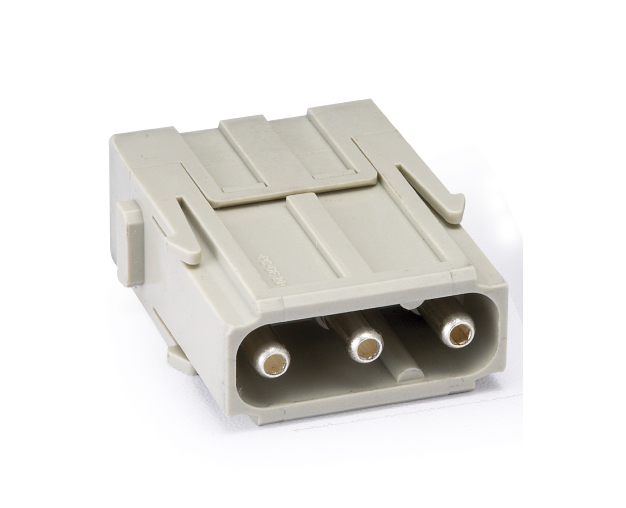

Module size:Single module,Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:3,Rated current:40A,Rated voltage:690V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):6-10mm²,Wire gauge (AWG):10-8 AWG,Tightening/testing torque:6mm²→2Nm|10mm²→2Nm

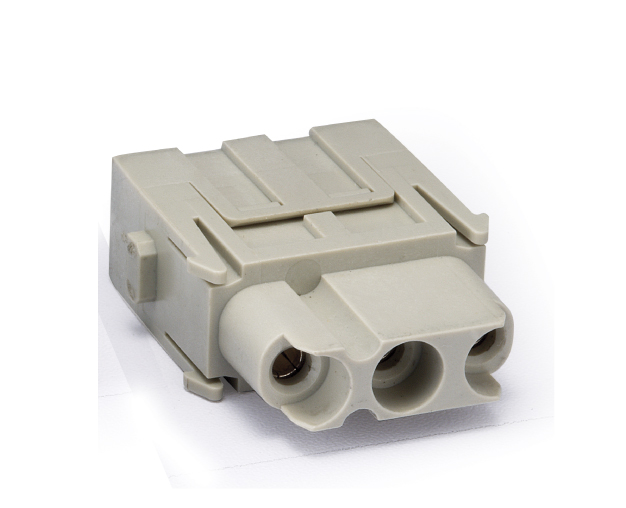

Module size:Single module,Connection type:Axial bolt connection,Male/female:Female,Number of connector contacts:3,Rated current:40A,Rated voltage:690V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):6-10mm²,Wire gauge (AWG):10-8 AWG,Tightening/testing torque:6mm²→2Nm|10mm²→2Nm

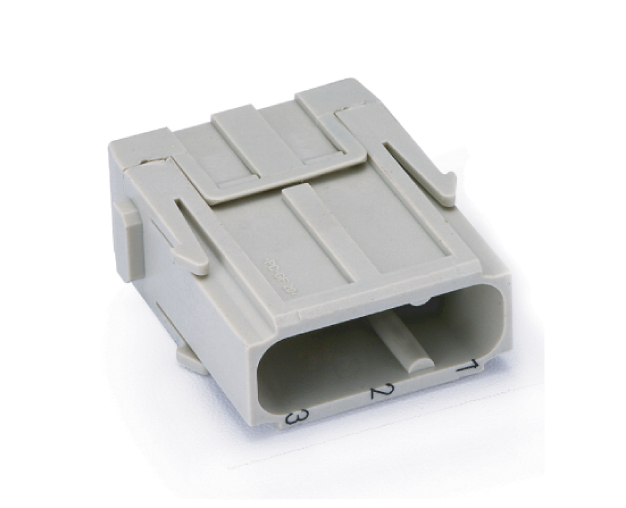

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:3,Rated current:40A,Rated voltage:500V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-10mm²,Wire gauge (AWG):16-8 AWG

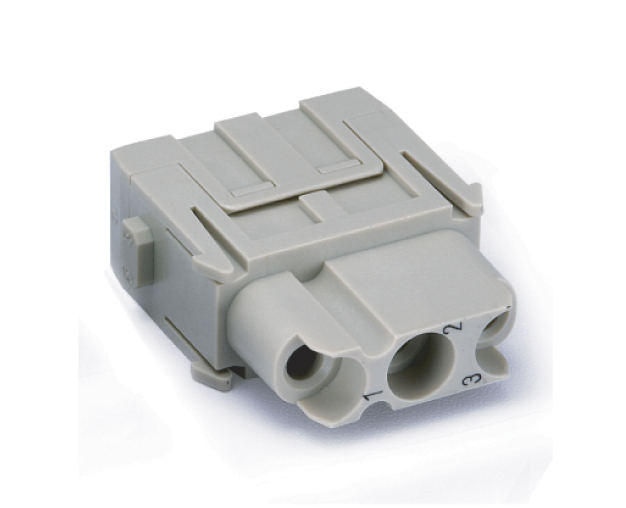

Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:3,Rated current:40A,Rated voltage:500V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):1.5-10mm²,Wire gauge (AWG):16-8 AWG

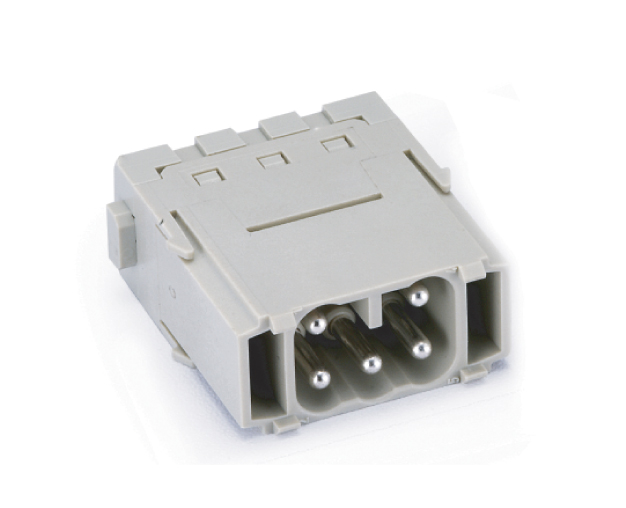

Module size:Single module,Connection type:Spring connection,Male/female:Male,Number of connector contacts:5,Rated current:16A,Rated voltage:400V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

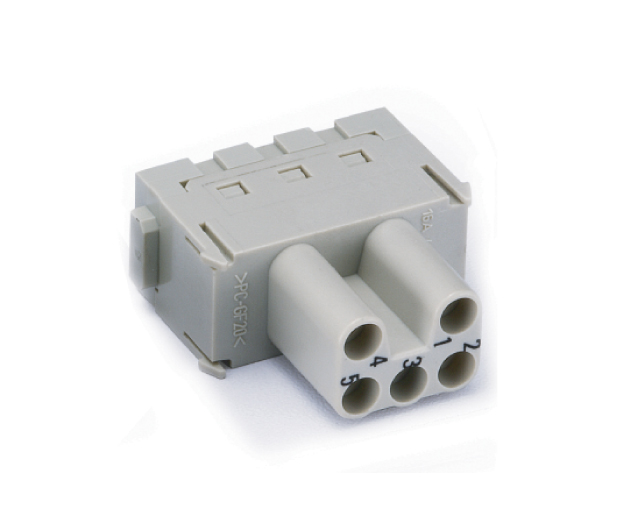

Module size:Single module,Connection type:Spring connection,Male/female:Female,Number of connector contacts:5,Rated current:16A,Rated voltage:400V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

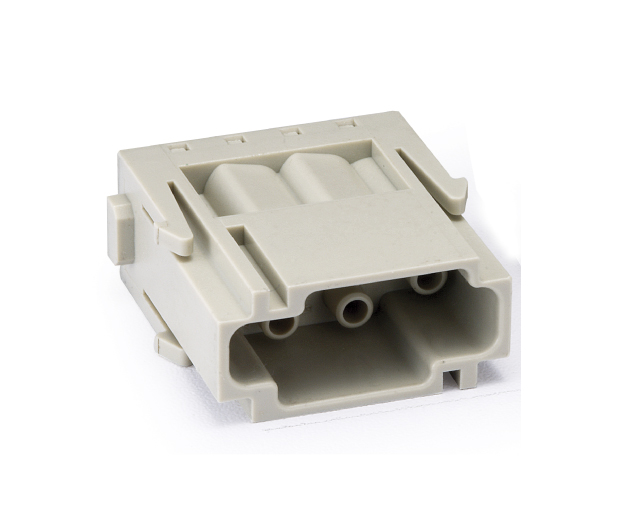

Module size:Single module,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:6,Rated current:16A,Rated voltage:500V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG

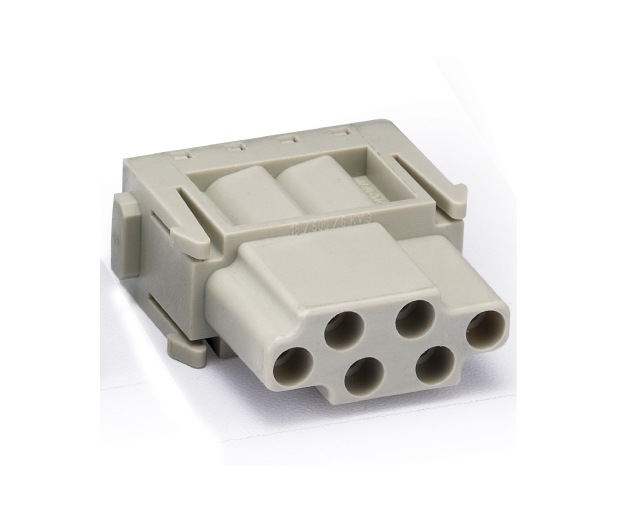

Module size:Single module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:6,Rated current:16A,Rated voltage:500V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):0.14-4mm²,Wire gauge (AWG):26-12 AWG
