Regular inserts
500V/16A
Up to 48 contacts
Multiple connection options include screw, crimp, spring, and pre-installation
Product column： Rectangular Connectors >>Inserts >>HE insert series

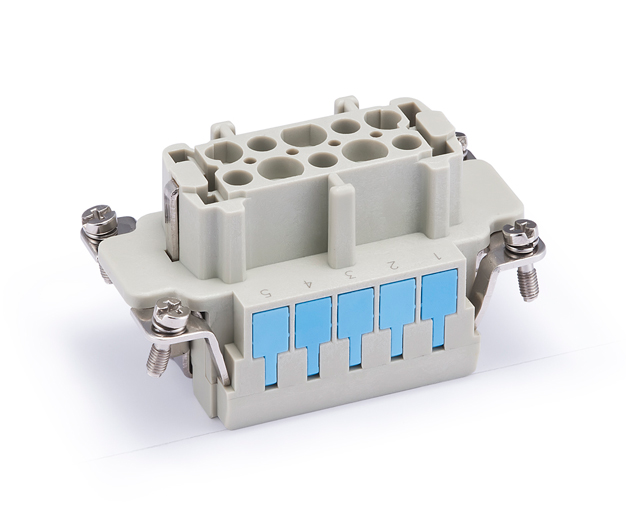

Rated voltage:500V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG,Connection type:Spring connection,Male/female:Female,Specifications:10B,Number of connector contacts:10,Rated current:16A

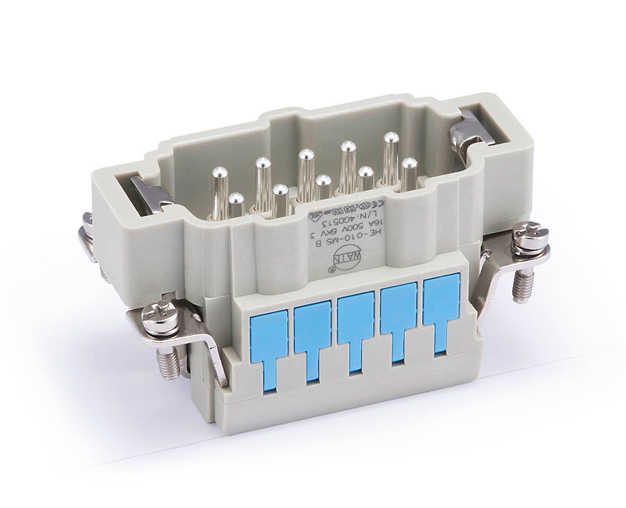

Connection type:Spring connection,Male/female:Male,Specifications:10B,Number of connector contacts:10,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
Connection type:Horizontal 2PIN short circuit,Male/female:NA,Specifications:NA,Number of connector contacts:2,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):NA,Wire gauge (AWG):NA
Wire gauge (mm²):NA,Wire gauge (AWG):NA,Connection type:Horizontal 3PIN short circuit,Male/female:NA,Specifications:NA,Number of connector contacts:3,Rated current:16A,Rated voltage:500V
Connection type:Vertical 2PIN short connection,Male/female:NA,Specifications:NA,Number of connector contacts:2,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):NA,Wire gauge (AWG):NA

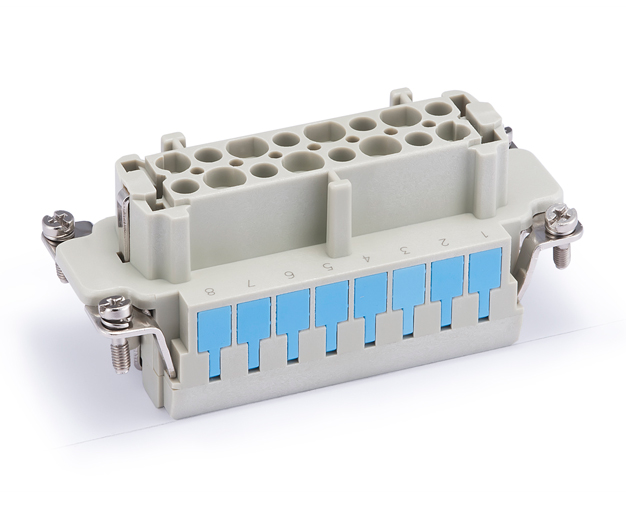

Connection type:Spring connection,Male/female:Female,Specifications:16B|32B,Number of connector contacts:16,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

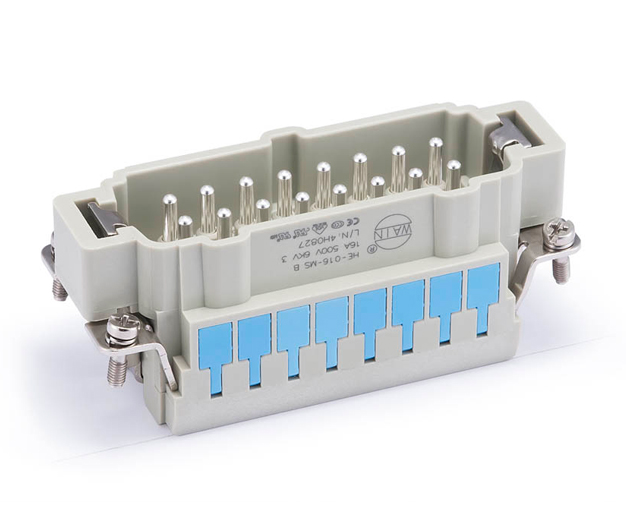

Connection type:Spring connection,Male/female:Male,Specifications:16B|32B,Number of connector contacts:16,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
Connection type:Crimp connection,Male/female:Male,Specifications:6B,Number of connector contacts:6,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG
