Regular inserts
500V/16A
Up to 48 contacts
Multiple connection options include screw, crimp, spring, and pre-installation
Product column： Rectangular Connectors >>Inserts >>HE insert series
Connection type:Spring connection (quick connection),Male/female:Female,Specifications:24B|48B,Number of connector contacts:24,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-14 AWG

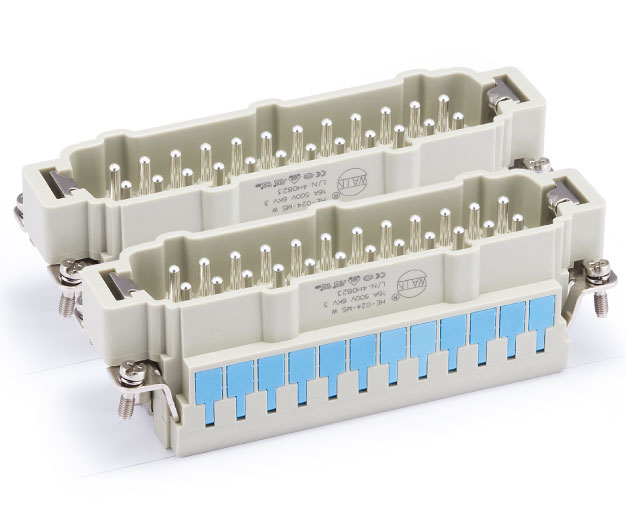

Connection type:Spring connection (quick connection),Male/female:Male,Specifications:24B|48B,Number of connector contacts:24,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-14 AWG

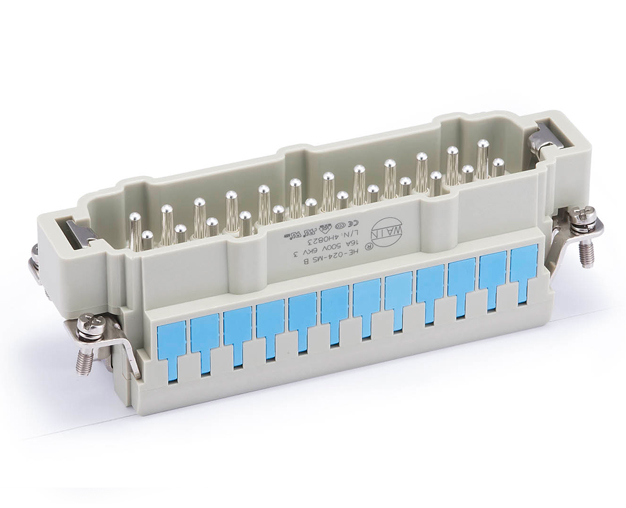

Connection type:Spring connection,Male/female:Male,Specifications:24B|48B,Number of connector contacts:24,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
Connection type:Spring connection,Male/female:Male,Specifications:16B|32B,Number of connector contacts:16,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

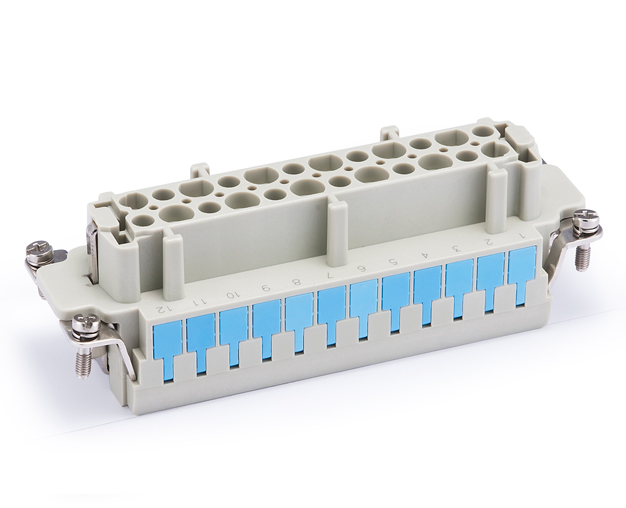

Connection type:Spring connection,Male/female:Female,Specifications:24B|48B,Number of connector contacts:24,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

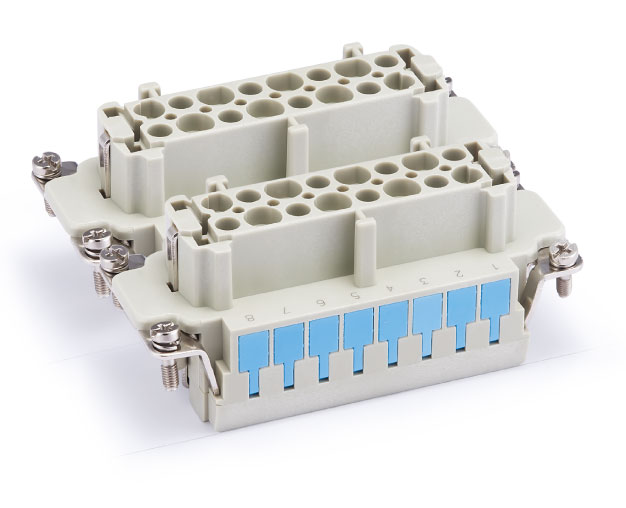

Connection type:Spring connection,Male/female:Female,Specifications:16B|32B,Number of connector contacts:16,Rated current:16A,Rated voltage:500V,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
