OEM/ODM HA insert series, China Inserts Factory

HA insert series

Small inserts 400V/16A

Up to 32 contacts

Multiple connection options include screw, crimp, spring, and Quick in

Inserts

37 search results

Total:37

Total:5 page:4/5

HA-016-FC(17-32)

Insert

121 016 020 0002

Product column： Rectangular Connectors >>Inserts >>HA insert series

Connection type:Crimp connection,Male/female:Female,Specifications:16A|32A,Number of connector contacts:16,Rated current:16A,Rated voltage:250V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

Suitable for the shell of the insert housing

+more
HA-016-MC(17-32)

Insert

121 016 010 0002

Product column： Rectangular Connectors >>Inserts >>HA insert series

Connection type:Crimp connection,Male/female:Male,Specifications:16A|32A,Number of connector contacts:16,Rated current:16A,Rated voltage:250V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

Suitable for the shell of the insert housing

+more

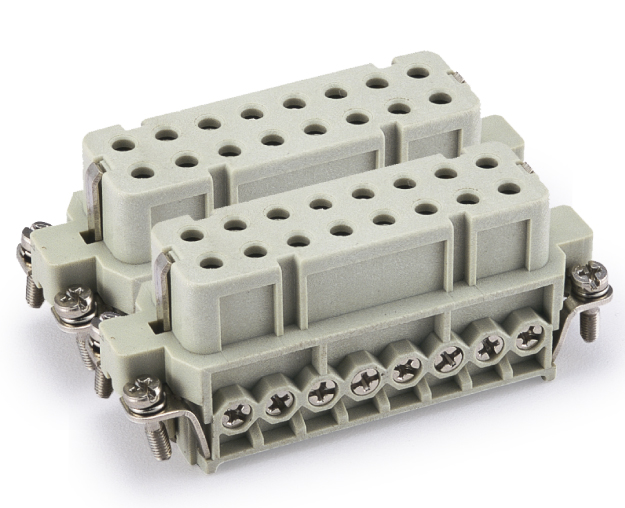

HA-016-F(17-32)

Insert

121 016 021 0002

Product column： Rectangular Connectors >>Inserts >>HA insert series

Connection type:Screw connection,Male/female:Female,Specifications:16A|32A,Number of connector contacts:16,Rated current:16A,Rated voltage:250V,Wire gauge (mm²):0.75-2.5mm²,Wire gauge (AWG):18-14 AWG

Suitable for the shell of the insert housing

+more

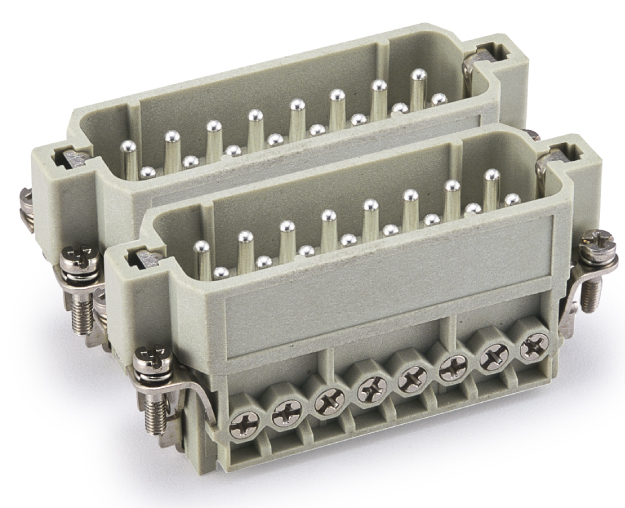

HA-016-M(17-31)

Insert

121 016 011 0002

Product column： Rectangular Connectors >>Inserts >>HA insert series

Connection type:Screw connection,Male/female:Male,Specifications:16A|32A,Number of connector contacts:16,Rated current:16A,Rated voltage:250V,Wire gauge (mm²):0.75-2.5mm²,Wire gauge (AWG):18-14 AWG

Suitable for the shell of the insert housing

+more
HA-016-FC

Insert

121 016 020 0001

Product column： Rectangular Connectors >>Inserts >>HA insert series

Connection type:Crimp connection,Male/female:Female,Specifications:16A|32A,Number of connector contacts:16,Rated current:16A,Rated voltage:250V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

Suitable for the shell of the insert housing

+more

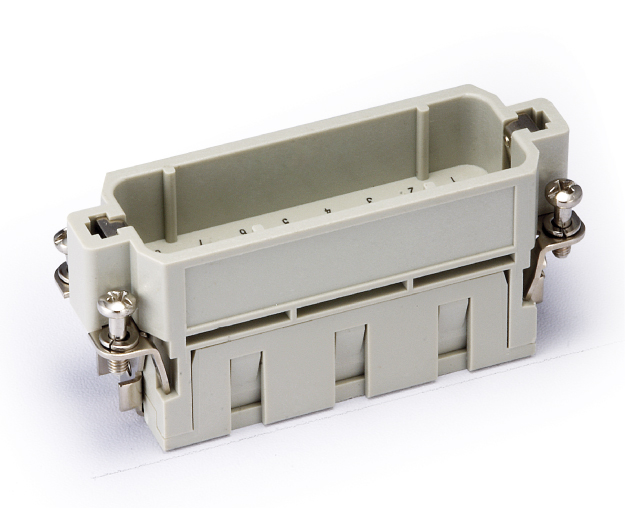

HA-016-MC

Insert

121 016 010 0001

Product column： Rectangular Connectors >>Inserts >>HA insert series

Connection type:Crimp connection,Male/female:Male,Specifications:16A|32A,Number of connector contacts:16,Rated current:16A,Rated voltage:250V,Wire gauge (mm²):0.14-4.0mm²,Wire gauge (AWG):26-12 AWG

Suitable for the shell of the insert housing

+more
HA-010-MS

Insert

121 010 012 0001

Product column： Rectangular Connectors >>Inserts >>HA insert series

Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG,Connection type:Spring connection,Male/female:Male,Specifications:10A,Number of connector contacts:10,Rated current:16A,Rated voltage:250V

Suitable for the shell of the insert housing

+more

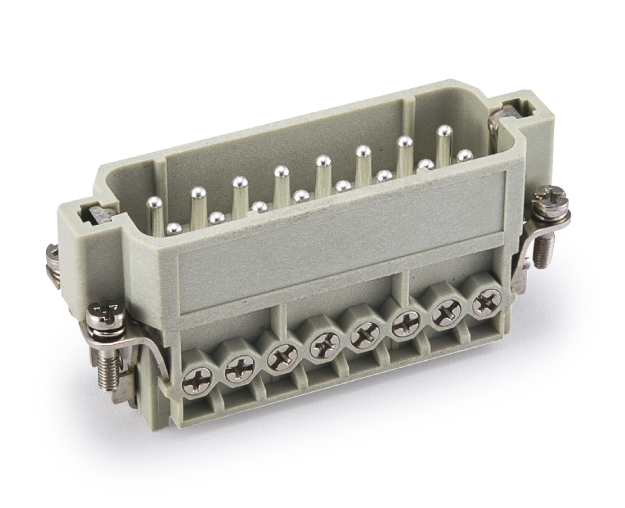

HA-016-M

Insert

121 016 011 0001

Product column： Rectangular Connectors >>Inserts >>HA insert series

Connection type:Screw connection,Male/female:Male,Specifications:16A|32A,Number of connector contacts:16,Rated current:16A,Rated voltage:250V,Wire gauge (mm²):0.75-2.5mm²,Wire gauge (AWG):18-14 AWG

Suitable for the shell of the insert housing

+more

Total:37

Total:5 page:4/5
