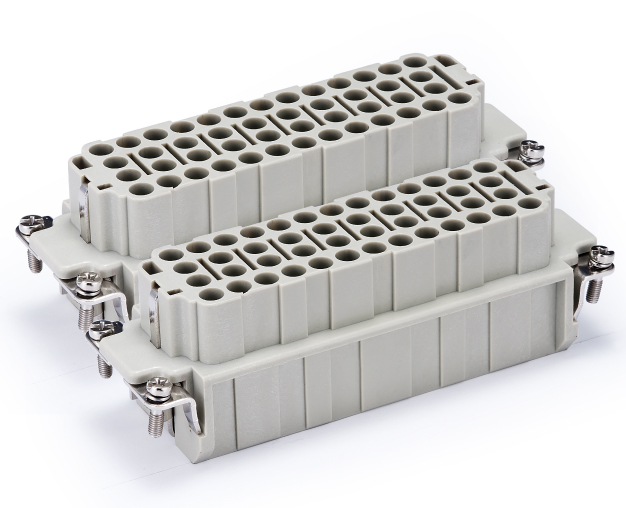

HEE-046-FC/N(47-92)

HEE-046-FC/N(47-92)

Model： HEE-046-FC/N(47-92)

Order No： 123 046 020 0102

Do you need to order crimp contacts separately： Yes

Suitable for the shell of the insert housing

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HEE insert series
Connection type

Crimp connection
Male/female

Female
Specifications

24B

48B
Number of connector contacts

46
Grounding contacts

Yes
Rated current

16A
Rated voltage

500V
Rated pulse voltage

6KV
Class of pollution

3
Parameters when class of pollution is 2

16A 830V 8KV 2
Rated voltage as per UL/CSA

600V
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Silver-plated

Gold-plated
Contact resistance

≤1mΩ
Wire gauge (mm²)

0.14-4.0mm²
Wire gauge (AWG)

26-12 AWG
Stripping length

7.5mm
Standard

DIN EN 60 664

DIN EN 61984

Authentication

CE
EAC

Downloads

2D Drawings

3D Models

3D_1230460200102_HEE-046-FC(47-92)_N_V1.0.stp
