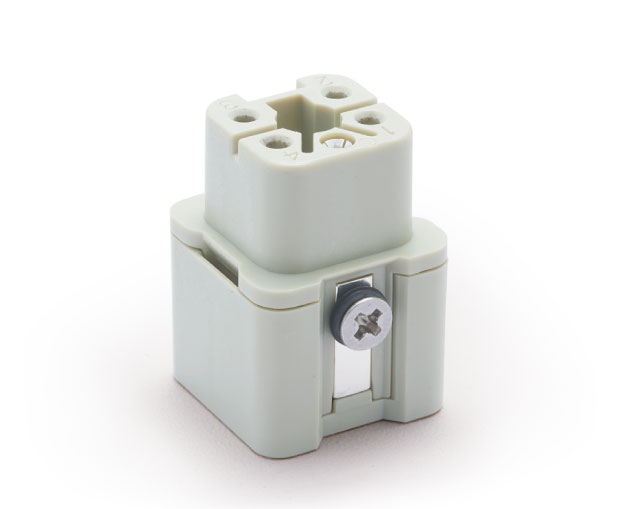

HA-004-F

Model： HA-004-F

Order No： 121 004 021 0001

Do you need to order crimp contacts separately： No

Suitable for the shell of the insert housing

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HA insert series
Connection type

Screw connection
Male/female

Female
Specifications

3A
Number of connector contacts

4
Grounding contacts

Yes
Rated current

10A
Rated voltage - phase to ground

230V
Rated voltage - phase to phase

400V
Rated pulse voltage

4KV
Class of pollution

3
Parameters when class of pollution is 2

10A 250V 4kV 3
Rated voltage as per UL/CSA

600V
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Silver-plated
Contact resistance

≤1mΩ
Wire gauge (mm²)

0.75-1.5mm²
Wire gauge (AWG)

18-16 AWG
Tightening/testing torque

0.25Nm
Stripping length

2.5-5.5mm
Standard

DIN EN 60 664

DIN EN 61984

Authentication

UL
CUL
VDE
CE
EAC
CQC

Downloads

2D Drawings

3D Models

3D_1210040210001_HA-004-F_V1.1.stp
