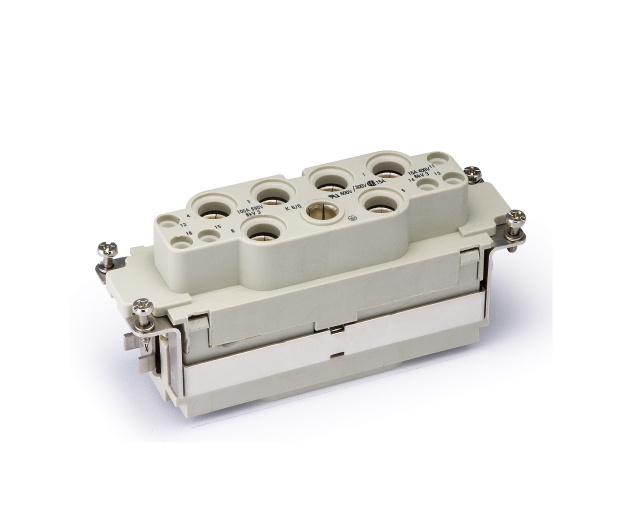

HK-006/6-F

Model： HK-006/6-F

Order No： 128 012 021 0101

Do you need to order crimp contacts separately： No

Suitable for the shell of the insert housing

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HK insert series
Male/female

Female
Connection type

Axial bolt connection

screw connection
Specifications

24B
Number of connector contacts

6+6
Grounding contacts

Yes
Rated current

100A

16A
Rated voltage

690V

400V
Rated pulse voltage

8KV

6KV
Class of pollution

3
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Silver-plated
Contact resistance

≤0.5mΩ

≤3mΩ
Wire gauge (mm²)

16-35mm²

0.2-2.5mm²
Wire gauge (AWG)

5-2 AWG

24-14 AWG
Tightening/testing torque

16mm²→6Nm

25mm²→7Nm

35mm²→8Nm

0.2-2.5mm²→0.8Nm
Stripping length

16-35mm²→13±1mm

0.2-2.5mm²→7.5mm
Standard

DIN EN 60664

DIN EN 61984

Authentication

UL
CE
EAC
CQC

Downloads

2D Drawings

3D Models

3D_1280120210101_HK-006_6-F_V1.0.stp
