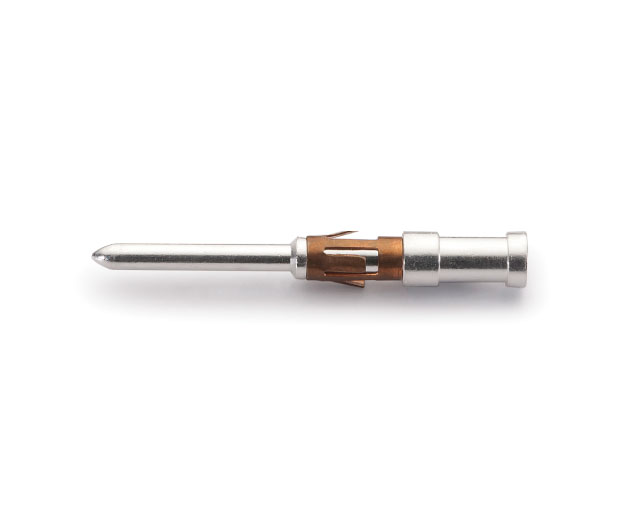

ZCDSM-2.5
ZCDSM-2.5

Model： ZCDSM-2.5

Order No： 101 017 110 1002

Do you need to order crimp contacts separately： No

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Male/female

    Male contact

  • Description

    Applicable to HD, HDD, HM, HK, HQ inserts

  • Material

    Copper alloy

  • Surface treatment

    Silver-plated

  • Rated current

    10A

  • Contact resistance

    ≤3mΩ

  • Wire gauge (mm²)

    2.5mm²

  • Wire gauge (AWG)

    14 AWG

  • Stripping length

    6mm

  • Mating cycles

    ≥500

Downloads
2D Drawings
3D Models
