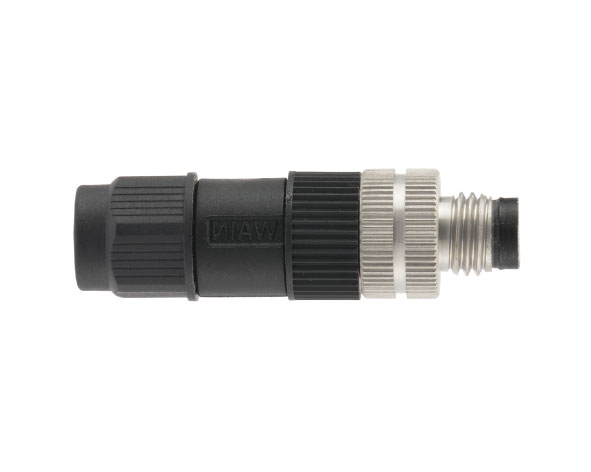

M8-MST03-T-D5
M8-MST03-T-D5

Model： M8-MST03-T-D5

Order No： 162 003 413 3001

Do you need to order crimp contacts separately： No

Suitable for the shell of the insert housing

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Series

    M8

  • Male/female

    Male connector

  • Number of connector contacts

    3

  • Cable outlet

    Straight

  • Shield

    None

  • Rated current

    4A

  • Rated voltage

    60V

  • Rated pulse voltage

    0.8KV

  • Contact resistance

    ≤10mΩ

  • Insulation material group

    Ⅱ

  • Overvoltage protection level

    Category III

  • Housing material

    Polyamide

  • Insulation materials

    PA

  • Seals

    Fluororubber

  • Contact material

    Copper alloy

  • Contact electroplating material

    Gold-plated

  • Locking method

    Threaded

  • Connection method

    Welding

  • Mating cycles

    ≥500

  • Working temperature

    -25℃...+85℃

  • Salt spray level

    72h

  • Protection rating

    IP67

  • Flame retardant rating as per UL94

    V0

  • Class of pollution

    3

  • Altitude

    2000m

Downloads
2D Drawings
3D Models
