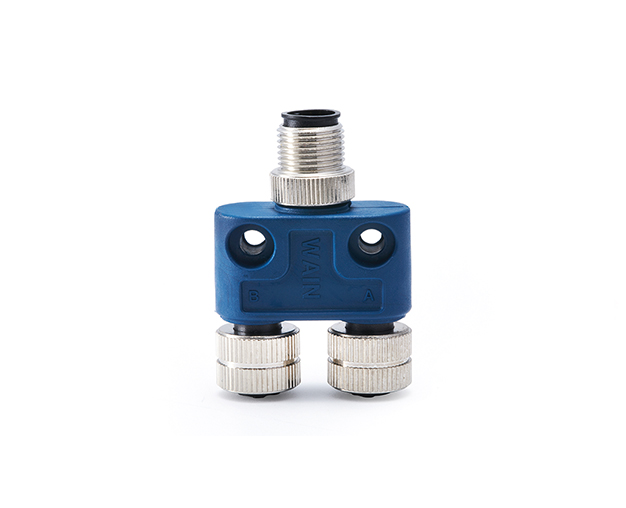

M12Y-M05A/2M12-F05A-CX

M12Y-M05A/2M12-F05A-CX

Model： M12Y-M05A/2M12-F05A-CX

Order No： 171 302 005 0301

Do you need to order crimp contacts separately： No

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

Junction box and adapter
Product Category

M12 distributor
Male/female

Male

Female
Encoding type

A coding
Number of connector contacts

5+2x5
Cable outlet

Straight
Shield

None
Rated current

4A
Rated voltage

60V
Rated pulse voltage

1.5KV
Contact resistance

≤10mΩ
Insulation material group

Ⅱ
Overvoltage protection level

Ⅱ
Housing material

TPU
Insulation materials

PA
Seals

Fluororubber
Contact material

Copper alloy
Surface treatment

Gold-plated
Locking method

Thread M12×1
Mating cycles

≥100
Salt spray level

72h
Protection rating

IP67
Working temperature

-25℃...+85℃
Flame retardant rating as per UL94

V0
Class of pollution

3
Altitude

2000m

Downloads

2D Drawings

3D Models

3D_1713020050301_M12Y-M05A_2M12-F05A-CX_V1.0.stp
