WAIN Circular Connectors provide a variety of products in different sizes, including M8, M12, M15, M17, M23, and M40. Due to their smaller footprint and lower installation costs, they are widely used in robotics, sensors, and engineering machinery.
Product column： Circular Connectors >>M12 series >>M12-A >>M12-A 4-pole

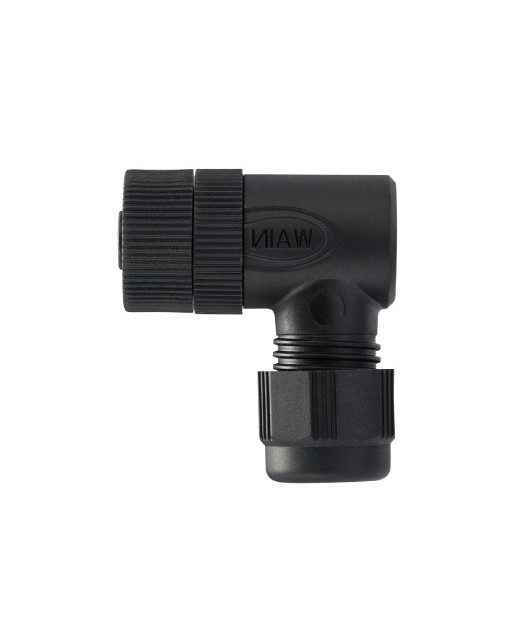

Product Category:,Male/female:Female connector,Encoding type:A coding,Number of connector contacts:4,Cable outlet:Elbow,Shield:None,Rated current:4A,Rated voltage:250V,Wire gauge (mm²):,Wire gauge (AWG):,Housing material:PA|PBT,Seals:Fluororubber,Contact material:Copper alloy,Locking method:Thread M12×1|Plastic locking elements,Connection method:Screw connection

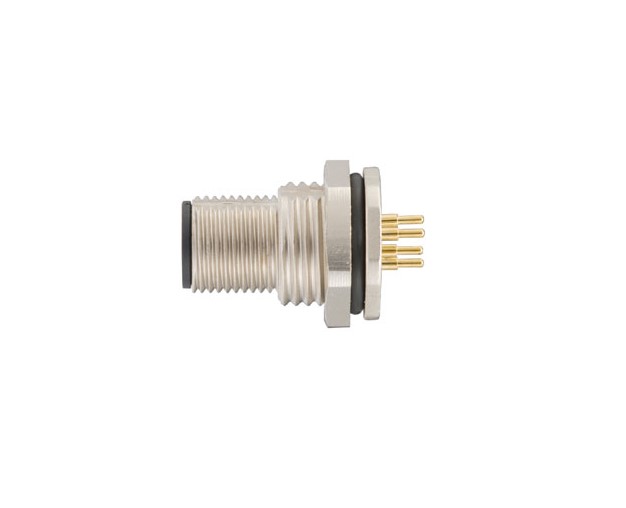

Product Category:,Male/female:Male connector,Encoding type:A coding,Number of connector contacts:4,Cable outlet:Straight,Shield:None,Rated current:4A,Rated voltage:250V,Wire gauge (mm²):max.0.75mm²,Wire gauge (AWG):max.18 AWG,Housing material:Cast zinc, nickel-plated,Seals:Fluororubber,Contact material:Copper alloy,Locking method:Thread M12×1,Connection method:Wire

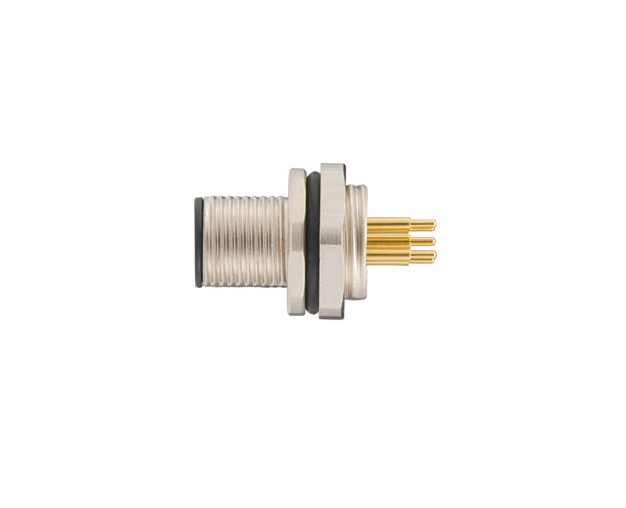

Product Category:,Male/female:Male connector,Encoding type:A coding,Number of connector contacts:4,Cable outlet:Straight,Shield:None,Rated current:4A,Rated voltage:250V,Wire gauge (mm²):,Wire gauge (AWG):,Housing material:Cast zinc, nickel-plated,Seals:Fluororubber,Contact material:Copper alloy,Locking method:Thread M12×1,Connection method:Dip soldering

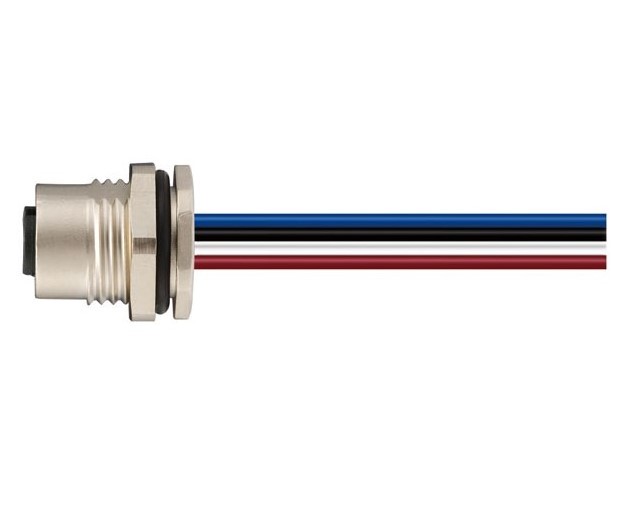

Housing material:Cast zinc, nickel-plated,Seals:Fluororubber,Contact material:Copper alloy,Locking method:Thread M12×1,Connection method:Wire,Product Category:,Male/female:Female connector,Encoding type:A coding,Number of connector contacts:4,Cable outlet:Straight,Shield:None,Rated current:4A,Rated voltage:250V,Wire gauge (mm²):max.0.75mm²,Wire gauge (AWG):max.18 AWG
Product Category:,Male/female:Female connector,Encoding type:A coding,Number of connector contacts:4,Cable outlet:Straight,Shield:None,Rated current:4A,Rated voltage:250V,Wire gauge (mm²):,Wire gauge (AWG):,Housing material:Cast zinc, nickel-plated,Seals:Fluororubber,Contact material:Copper alloy,Locking method:Thread M12×1,Connection method:Welding

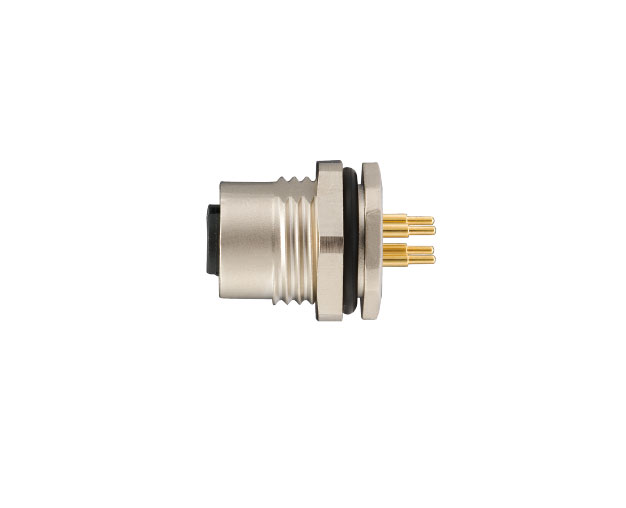

Seals:Fluororubber,Contact material:Copper alloy,Locking method:Thread M12×1,Connection method:Dip soldering,Product Category:,Male/female:Female connector,Encoding type:A coding,Number of connector contacts:4,Cable outlet:Straight,Shield:None,Rated current:4A,Rated voltage:250V,Wire gauge (mm²):,Wire gauge (AWG):,Housing material:Cast zinc, nickel-plated
Product Category:,Male/female:Female connector,Encoding type:A coding,Number of connector contacts:4,Cable outlet:Straight,Shield:None,Rated current:4A,Rated voltage:250V,Wire gauge (mm²):,Wire gauge (AWG):,Housing material:Cast zinc, nickel-plated,Seals:Fluororubber,Contact material:Copper alloy,Locking method:Thread M12×1,Connection method:Dip soldering
