WAIN Circular Connectors provide a variety of products in different sizes, including M8, M12, M15, M17, M23, and M40. Due to their smaller footprint and lower installation costs, they are widely used in robotics, sensors, and engineering machinery.

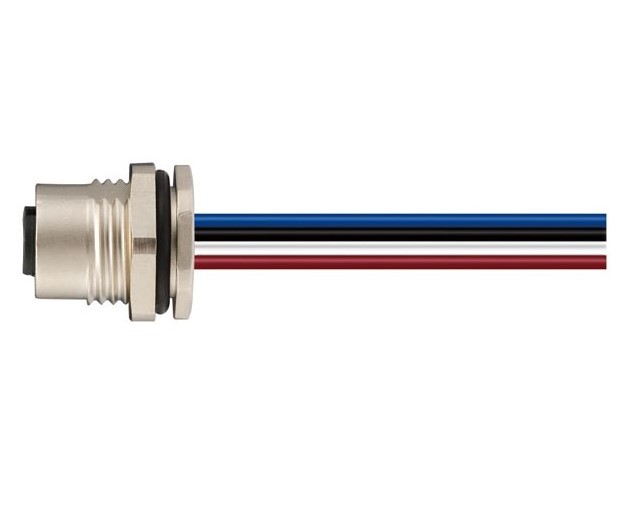

Product column： Circular Connectors >>M12 series >>M12-A >>M12-A 12-pole
Product Category:,Male/female:Female connector,Encoding type:A coding,Number of connector contacts:12,Cable outlet:Straight,Shield:None,Rated current:1.5A,Rated voltage:60V,Wire gauge (mm²):max.0.14mm²,Wire gauge (AWG):max.26 AWG,Housing material:Cast zinc, nickel-plated,Seals:Fluororubber,Contact material:Copper alloy,Locking method:Thread M12×1,Connection method:Wire
Product Category:,Male/female:Male connector,Encoding type:A coding,Number of connector contacts:12,Cable outlet:Straight,Shield:None,Rated current:1.5A,Rated voltage:60V,Wire gauge (mm²):max.0.14mm²,Wire gauge (AWG):max.26 AWG,Housing material:Cast zinc, nickel-plated,Seals:Fluororubber,Contact material:Copper alloy,Locking method:Thread M12×1,Connection method:Wire
Number of connector contacts:12,Cable outlet:Straight,Shield:None,Rated current:1.5A,Rated voltage:60V,Wire gauge (mm²):max.0.14mm²,Wire gauge (AWG):max.26 AWG,Housing material:Cast zinc, nickel-plated,Seals:Fluororubber,Contact material:Copper alloy,Locking method:Thread M12×1,Connection method:Wire,Product Category:,Male/female:Male connector,Encoding type:A coding
