WAIN Circular Connectors provide a variety of products in different sizes, including M8, M12, M15, M17, M23, and M40. Due to their smaller footprint and lower installation costs, they are widely used in robotics, sensors, and engineering machinery.
Product column： Circular Connectors >>HR23 insert series >>HR23 12-pole

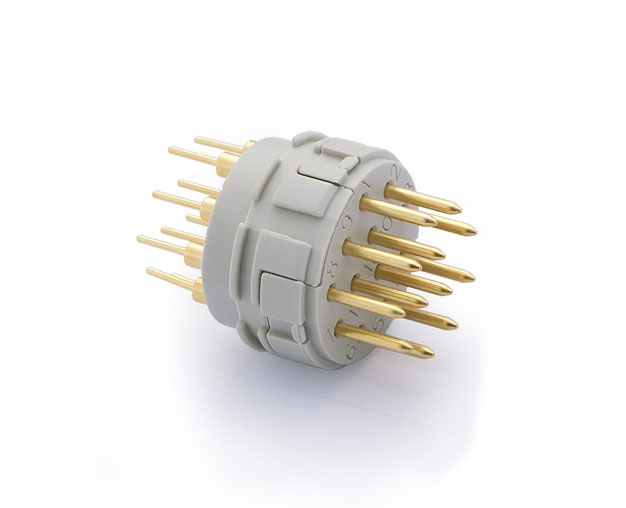

Male/female:Male connector,Connection method:PCB socket welded,Number of connector contacts:12,Rated current:7A,Rated voltage:25V~/60V-

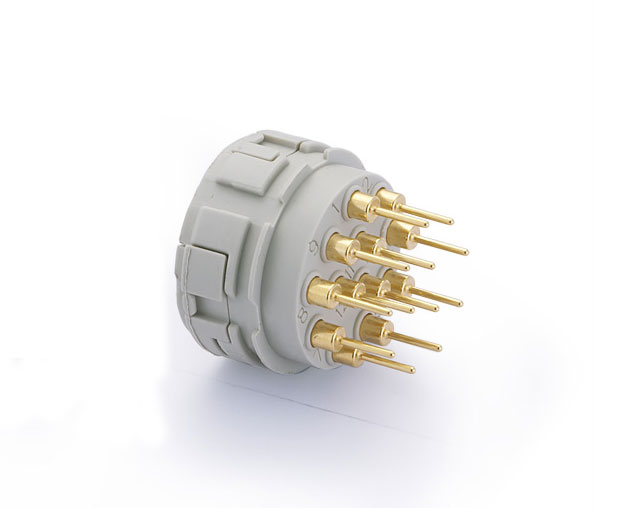

Male/female:Female connector,Connection method:PCB socket welded,Number of connector contacts:12,Rated current:7A,Rated voltage:25V~/60V-

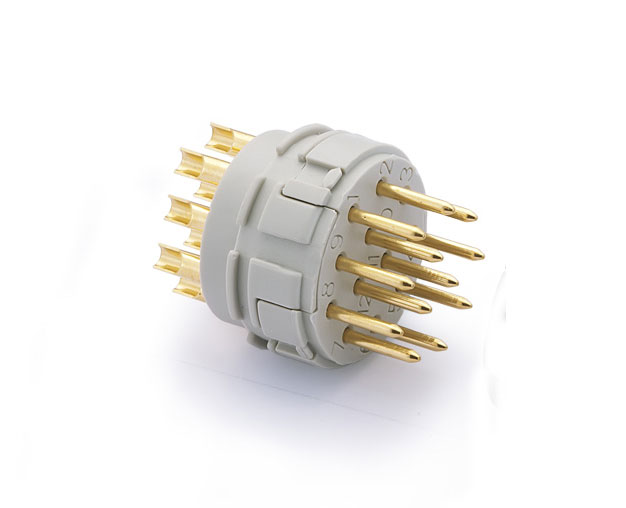

Male/female:Male connector,Connection method:Welding connection,Number of connector contacts:12,Rated current:7A,Rated voltage:25V~/60V-,Wire gauge (mm²):0.14-1.0mm²,Wire gauge (AWG):26-18 AWG

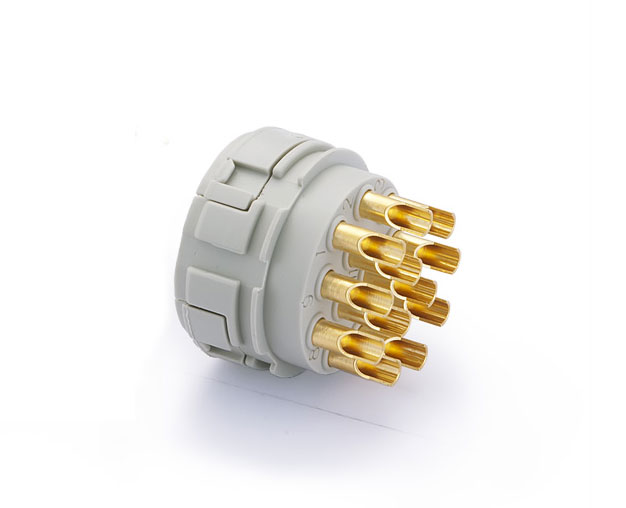

Male/female:Female connector,Connection method:Welding connection,Number of connector contacts:12,Rated current:7A,Rated voltage:25V~/60V-,Wire gauge (mm²):0.14-1.0mm²,Wire gauge (AWG):26-18 AWG

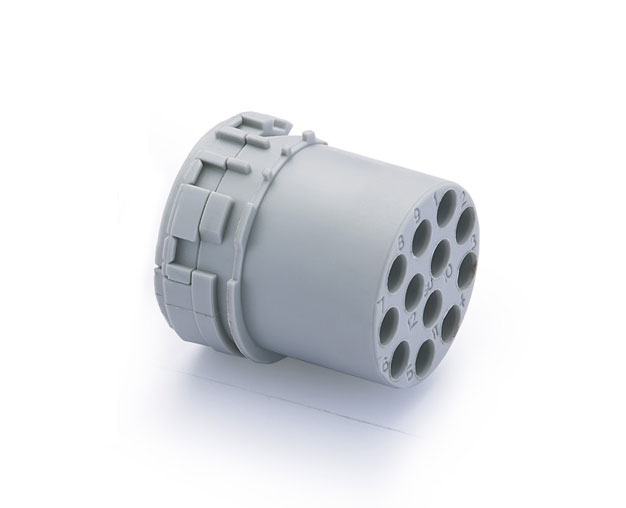

Rated current:7A,Rated voltage:25V~/60V-,Wire gauge (mm²):0.09-0.82mm²,Wire gauge (AWG):28-18 AWG,Male/female:Female connector,Connection method:Crimp connection,Number of connector contacts:12
Male/female:Female connector,Connection method:Welding connection,Number of connector contacts:12,Rated voltage:25V AC|60V DC,Inserts material:Thermoplastic polyester,Contact material:Copper alloy,Wire gauge (mm²):0.14-1.0mm²,Wire gauge (AWG):26-18 AWG
Male/female:Male connector,Connection method:Welding connection,Number of connector contacts:12,Rated voltage:25V AC|60V DC,Inserts material:Thermoplastic polyester,Contact material:Copper alloy,Wire gauge (mm²):0.14-1.0mm²,Wire gauge (AWG):26-18 AWG
