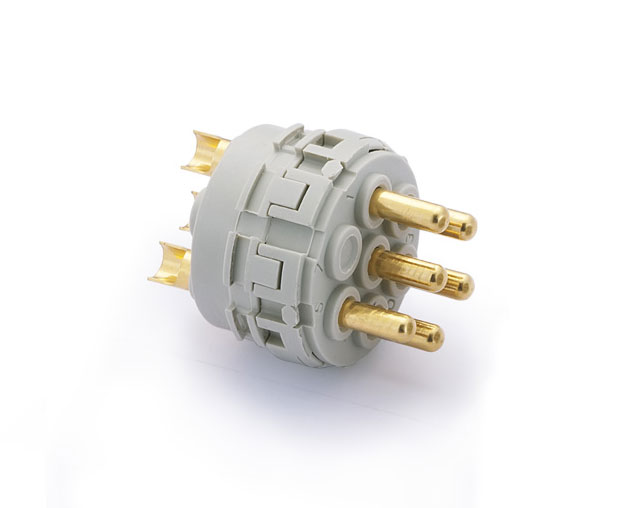

HR23-006-MST
HR23-006-MST

Model： HR23-006-MST

Order No： 181 006 013 0001

Do you need to order crimp contacts separately： No

Suitable for the shell of the insert housing

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Series

    HR23 insert series

  • Male/female

    Male connector

  • Connection method

    Welding connection

  • Number of connector contacts

    6

  • Rated current

    15A

  • Rated voltage

    25V~/60V-

  • Rated pulse voltage

    1.5KV

  • Working temperature

    -40℃...+130℃

  • Mating cycles

    ≥500

  • Inserts material

    Thermoplastic polyester

  • Flame retardant rating as per UL94

    V0

  • Class of pollution

    3

  • Altitude

    2000m

  • Contact material

    Copper alloy

  • Surface treatment

    Gold-plated

  • Contact resistance

    ≤5mΩ

  • Wire gauge (mm²)

    0.14-2.5mm²

  • Wire gauge (AWG)

    26-14 AWG

Downloads
2D Drawings
3D Models
