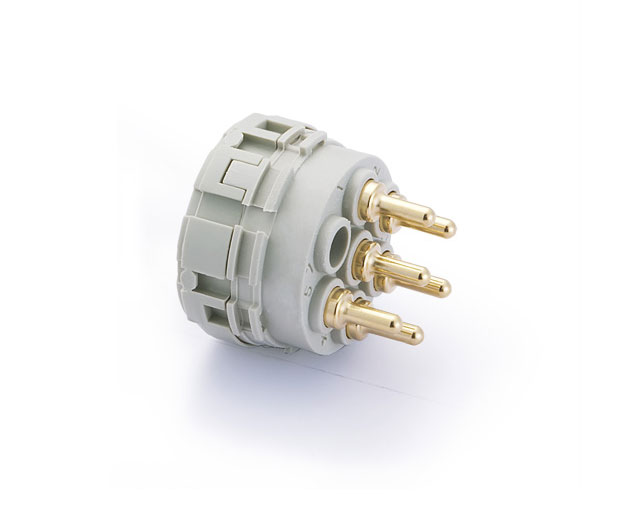

HR23-006-FTHT
HR23-006-FTHT

Model： HR23-006-FTHT

Order No： 181 006 024 0001

Do you need to order crimp contacts separately： No

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Series

    HR23 insert series

  • Male/female

    Female connector

  • Connection method

    PCB socket welded

  • Number of connector contacts

    6

  • Rated current

    15A

  • Rated voltage

    25V~/60V-

  • Rated pulse voltage

    1.5KV

  • Working temperature

    -40℃...+130℃

  • Inserts material

    Thermoplastic polyester

  • Mating cycles

    ≥500

  • Flame retardant rating as per UL94

    V0

  • Class of pollution

    3

  • Altitude

    2000m

  • Contact material

    Copper alloy

  • Surface treatment

    Gold-plated

  • Contact resistance

    ≤5mΩ

  • Wire gauge (mm)

    1.5mm

  • Contact insertion length

    3.5mm

Downloads
2D Drawings
3D Models
