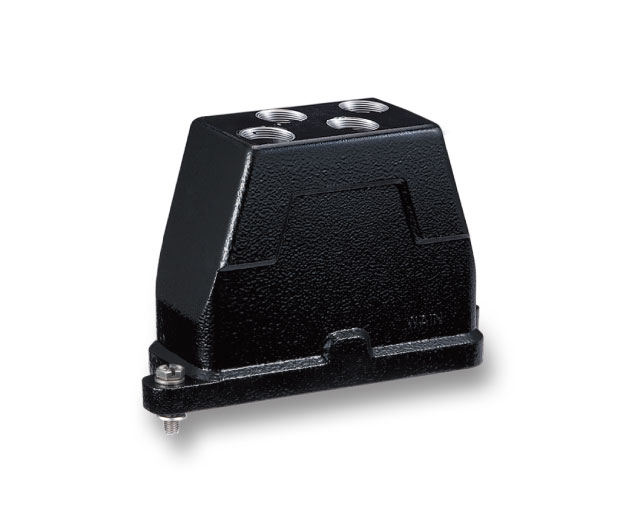

HP24B/H-TEH-2S-4M25

HP24B/H-TEH-2S-4M25

Model： HP24B/H-TEH-2S-4M25

Order No： 113 624 420 5039

Do you need to order crimp contacts separately： No

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

Pressure tight housing
Specifications

24B
Housing type

Surface mounting upper housing
Outgoing method

Top outlet
Locking type

Screw locking
Thread

M25
Housing material

Die casting aluminum
Housing color

RAL 9005 (ink black)
Surface treatment

Powder coating
Interlocking method

Bolted connection
Material

Stainless steel
Seals

NBR
Flame retardant rating as per UL94

V0
Working temperature

-40℃...+125℃
Protection rating

IP68/IP69K

Authentication

UL
CUL

Downloads

2D Drawings

3D Models

3D_1136244205039_HP24B_H-TEH-2S-4M25_V1.1.stp
