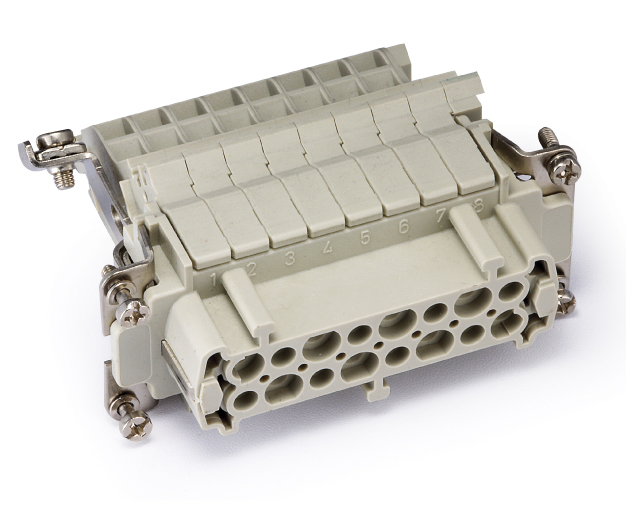

HE-016-F.AV.R

Model： HE-016-F.AV.R

Order No： 122 016 021 0102

Do you need to order crimp contacts separately： No

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Wire gauge (mm²)

0.14-2.5mm²
Wire gauge (AWG)

26-14 AWG
Class of pollution

3
Series

HE AV insert series
Connection type

Screw connection
Male/female

Female
Specifications

16B

32B
Number of connector contacts

16
Grounding contacts

Yes
Rated current

16A
Rated voltage

500V
Rated pulse voltage

6KV
Class of pollution

3
Rated voltage as per UL/CSA

600V
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Bonding side

Silver-plated
Connection side

Tin-plated
Contact resistance

≤4mΩ
Tightening/testing torque

0.5Nm
Wire gauge (mm²)

0.14-2.5mm²
Wire gauge (AWG)

26-14 AWG
Standard

DIN EN 60 664

DIN EN 61984

Authentication

UL
CUL
VDE
CE
EAC
CQC
