HE-010-MS
HE-010-MS

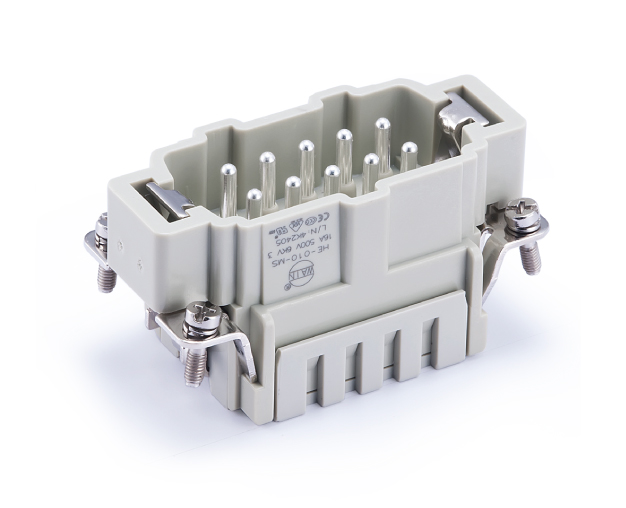

Model： HE-010-MS

Order No： 122 010 012 0001

Do you need to order crimp contacts separately： No

Suitable for the shell of the insert housing

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Series

    HE insert series

  • Connection type

    Spring connection

  • Male/female

    Male

  • Specifications

    10B

  • Number of connector contacts

    10

  • Grounding contacts

    Yes

  • Rated current

    16A

  • Rated voltage

    500V

  • Rated pulse voltage

    6KV

  • Class of pollution

    3

  • Parameters when class of pollution is 2

    16A 400/690V 6KV 2

  • Rated voltage as per UL/CSA

    600V

  • Insulation resistance

    ≥10¹ºΩ

  • Working temperature

    -40℃...+125℃

  • Mating cycles

    ≥500

  • Inserts material

    Polycarbonate

  • Inserts color

    RAL 7032 (light gray)

  • Flame retardant rating as per UL94

    V0

  • Contact material

    Copper alloy

  • Surface treatment

    Silver-plated

  • Contact resistance

    ≤1mΩ

  • Wire gauge (mm²)

    0.14-2.5mm²

  • Wire gauge (AWG)

    26-14 AWG

  • Stripping length

    7-9mm

  • Standard

    DIN EN 60 664

    DIN EN 61984
