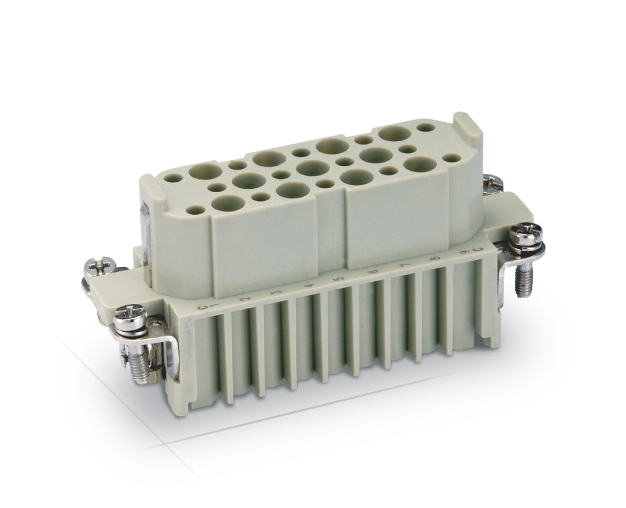

HD-025-FC

Model： HD-025-FC

Order No： 125 025 020 0001

Do you need to order crimp contacts separately： Yes

Suitable for the shell of the insert housing

Pin suitable for the core body

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HD insert series
Connection type

Crimp connection
Male/female

Female
Specifications

16A

32A
Number of connector contacts

25
Grounding contacts

Yes
Rated current

10A
Rated voltage

250V
Rated pulse voltage

4KV
Class of pollution

3
Parameters when class of pollution is 2

10A 230/400V 4kV 2
Rated voltage as per UL/CSA

600V
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Silver-plated

Gold-plated
Contact resistance

≤3mΩ
Wire gauge (mm²)

0.14-2.5mm²
Wire gauge (AWG)

26-14 AWG
Stripping length

5mm

6mm

8mm
Standard

DIN EN 60 664

DIN EN 61984

Authentication

UL
CUL
VDE
CE
EAC
CQC
