CHSF650-240G
CHSF650-240G

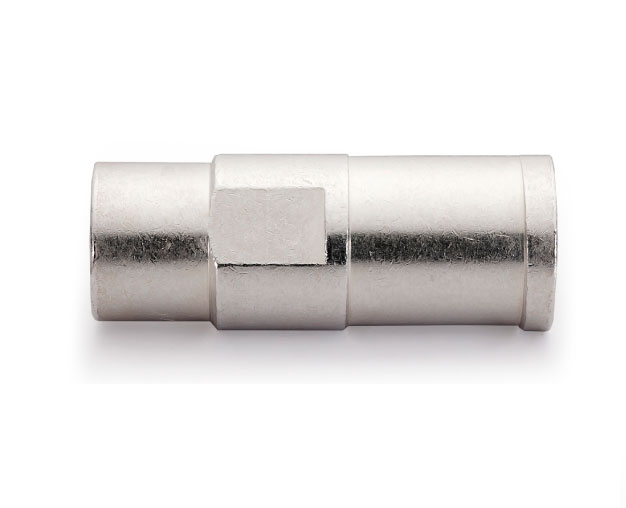

Model： CHSF650-240G

Order No： 101 030 120 2403

Do you need to order crimp contacts separately： No

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Male/female

    Female contact

  • Description

    Applicable to HC650 inserts

  • Material

    Copper alloy

  • Surface treatment

    Silver-plated

  • Rated current

    650A

  • Contact resistance

    ≤0.3mΩ

  • Wire gauge (mm²)

    240mm²

  • Stripping length

    46mm

  • Mating cycles

    ≥500

Downloads
2D Drawings
3D Models
