CHSF350-95G
CHSF350-95G

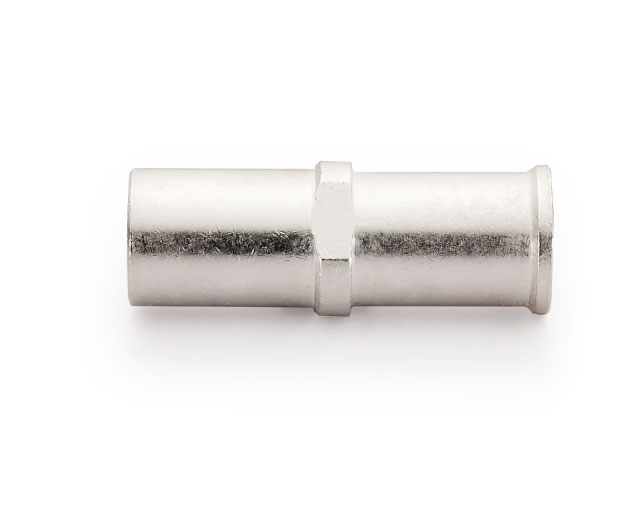

Model： CHSF350-95G

Order No： 101 029 120 2003

Do you need to order crimp contacts separately： No

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Male/female

    Female contact

  • Description

    Applicable to HC350 inserts

  • Material

    Copper alloy

  • Surface treatment

    Silver-plated

  • Rated current

    350A

  • Contact resistance

    ≤0.3mΩ

  • Wire gauge (mm²)

    95mm²

  • Stripping length

    30mm

  • Mating cycles

    ≥500

Downloads
2D Drawings
3D Models
