CHSF350-70G
CHSF350-70G

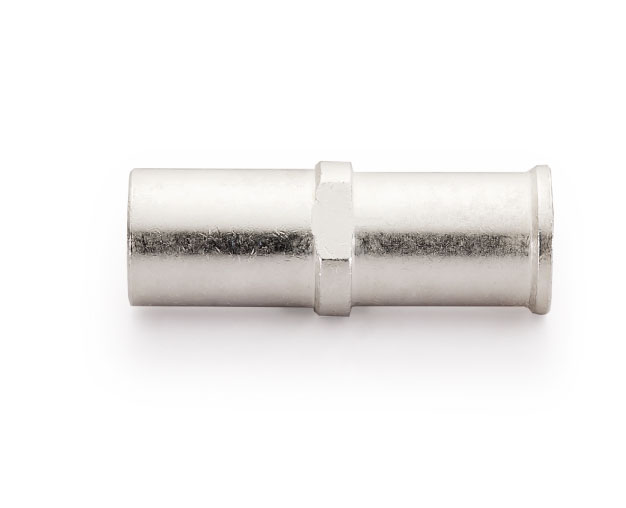

Model： CHSF350-70G

Order No： 101 029 120 1903

Do you need to order crimp contacts separately： No

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Male/female

    Female contact

  • Description

    Applicable to HC350 inserts

  • Material

    Copper alloy

  • Surface treatment

    Silver-plated

  • Rated current

    350A

  • Contact resistance

    ≤0.3mΩ

  • Wire gauge (mm²)

    70mm²

  • Stripping length

    28mm

  • Mating cycles

    ≥500

Downloads
2D Drawings
3D Models
