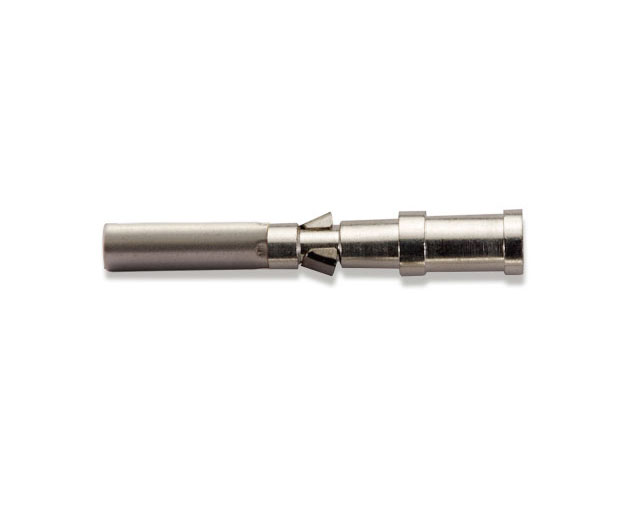

CDSF-1.0C

Model： CDSF-1.0C

Order No： 101 017 120 0806

Do you need to order crimp contacts separately： No

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Male/female

Female contact
Description

Applicable to HD, HDD, HM, HK, HQ inserts
Material

Copper alloy
Surface treatment

Silver-plated
Rated current

10A
Contact resistance

≤3mΩ
Wire gauge (mm²)

1mm²
Wire gauge (AWG)

18 AWG
Stripping length

8mm
Mating cycles

≥500

Downloads

2D Drawings

3D Models

3D_1010171200806_CDSF-1.0C_V1.0.stp
