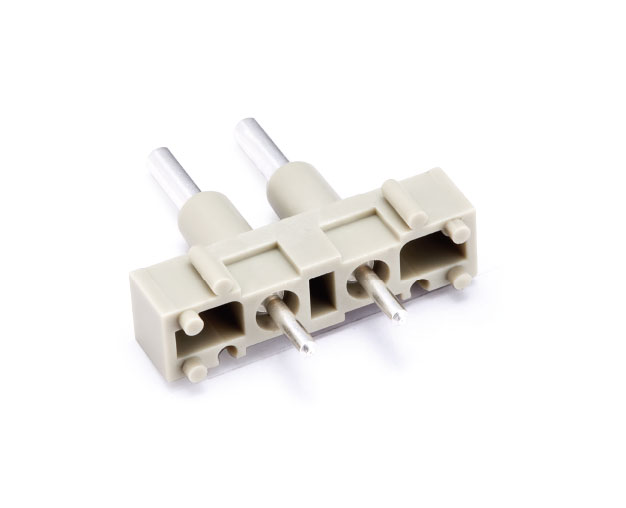

APT-2E16
APT-2E16

Model： APT-2E16

Order No： 198 002 007 0001

Do you need to order crimp contacts separately： Yes

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Series

    Accessories

  • Rated current

    16A

  • Rated voltage

    500V

  • Rated pulse voltage

    6KV

  • Wire gauge (mm²)

    0.5-4mm²

  • Class of pollution

    3

  • Insulation resistance

    ≥10¹ºΩ

  • Working temperature

    -40℃...+125℃

  • Mating cycles

    ≥500

  • Material

    Polycarbonate

  • Color

    RAL 7032 (light gray)

  • Flame retardant rating as per UL94

    V0

Downloads
2D Drawings
3D Models
