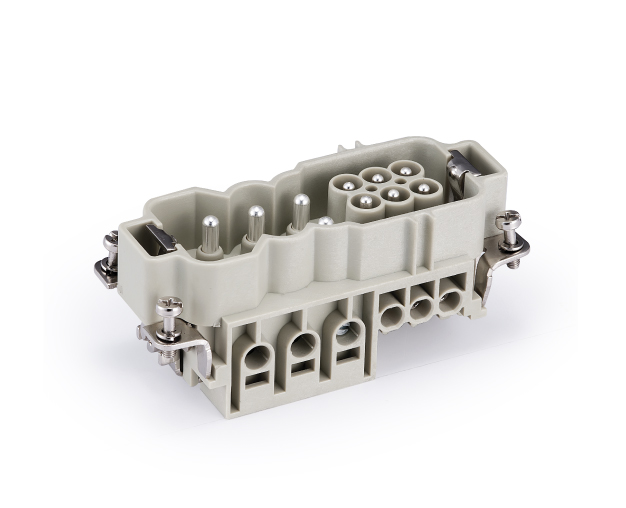

HWK-006/6-M

Model： HWK-006/6-M

Order No： 128 012 011 0201

Do you need to order crimp contacts separately： No

Suitable for the shell of the insert housing

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HK insert series
Male/female

Male
Connection type

Screw connection
Specifications

16B
Number of connector contacts

6+6
Grounding contacts

Yes
Rated current

40A

16A
Rated voltage

690V

400V
Rated pulse voltage

8KV

6KV
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Class of pollution

3
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Silver-plated
Contact resistance

≤0.3mΩ

≤1mΩ
Wire gauge (mm²)

4-10mm²

1-2.5mm²
Wire gauge (AWG)

12-8 AWG

18-14 AWG
Tightening/testing torque

4mm²→3Nm

6mm²→3Nm

10mm²→3Nm
Stripping length

4-10mm²→9.6mm

1-2.5mm²→7.5mm
Standard

DIN EN 60664

DIN EN 61984

Authentication

CE
EAC

Downloads

2D Drawings

3D Models

3D_1280120110201_HWK-006_6-M_V1.0.stp
