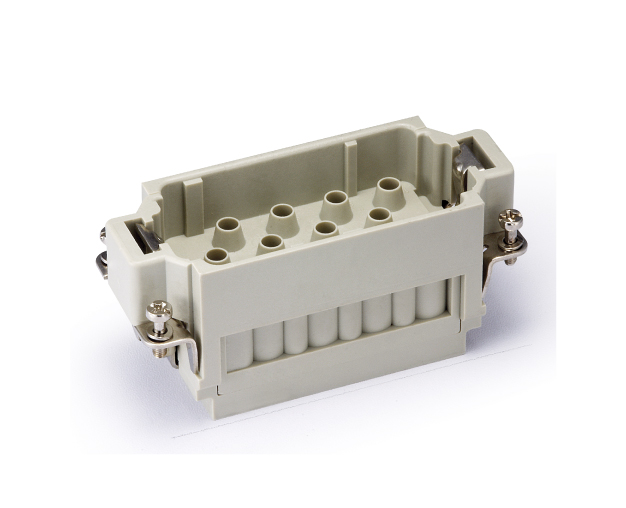

HKH-012/0-MC

Model： HKH-012/0-MC

Order No： 128 012 010 0001

Do you need to order crimp contacts separately： Yes

Suitable for the shell of the insert housing

Pin suitable for the core body

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HK insert series
Male/female

Male
Connection type

Crimp connection
Specifications

16B
Number of connector contacts

12
Grounding contacts

Yes
Rated current

40A
Rated voltage

690V
Rated pulse voltage

8KV
Class of pollution

3
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥5000
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Gold-plated
Contact resistance

≤1mΩ
Wire gauge (mm²)

1.5-6mm²
Wire gauge (AWG)

16-10 AWG
Stripping length

1.5-6mm²→9.6mm

10mm²→12mm
Standard

DIN EN 60664

DIN EN 61984

Downloads

2D Drawings

3D Models

3D_1280120100001_HKH-012_2-MC_V1.0.stp
