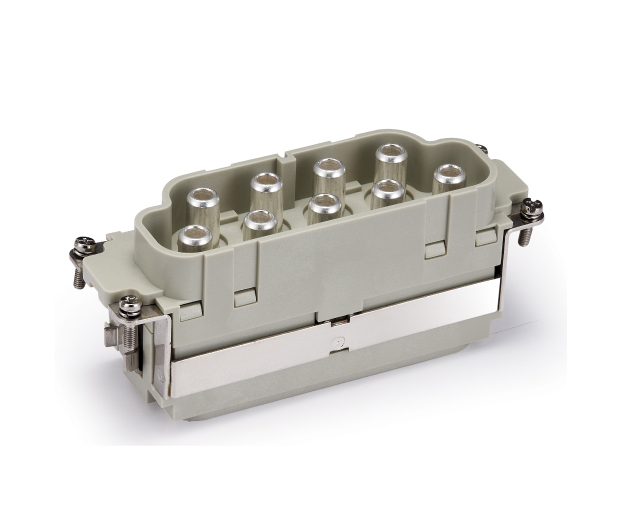

HK-008/0-M

Model： HK-008/0-M

Order No： 128 008 011 0001

Do you need to order crimp contacts separately： No

Suitable for the shell of the insert housing

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HK insert series
Male/female

Male
Connection type

Axial bolt connection

screw connection
Specifications

24B
Number of connector contacts

8
Grounding contacts

Yes
Rated current

100A
Rated voltage

690V
Rated pulse voltage

8KV
Class of pollution

3
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Silver-plated
Contact resistance

≤0.5mΩ
Wire gauge (mm²)

10-25mm²
Wire gauge (AWG)

7-3 AWG
Tightening/testing torque

10mm²→6Nm

16mm²→6Nm

25mm²→7Nm
Stripping length

13±1mm
Standard

DIN EN 60664

DIN EN 61984

Authentication

UL
VDE
CE
EAC
CQC

Downloads

2D Drawings

3D Models

3D_1280080110001_HK-008_0-M_V1.0.stp
