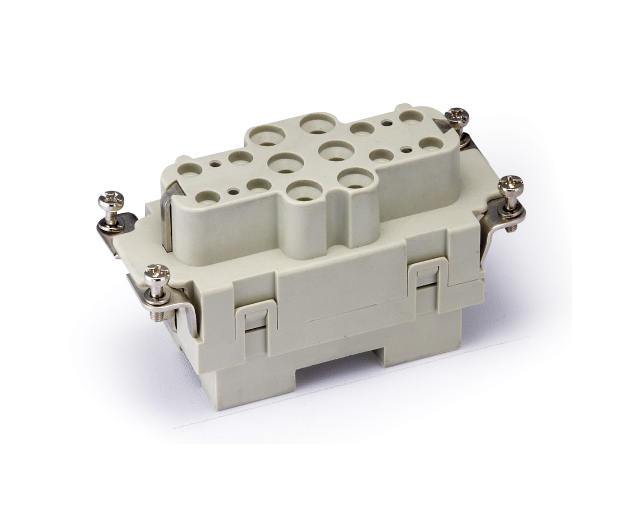

HK insert series

Axial bolt connection

screw connection

Female

16B

6+12

Yes

40A

10A

690V

230V

400V

6KV

4KV

3

≥10¹ºΩ

-40℃...+125℃

≥500

Polycarbonate

RAL 7032 (light gray)

V0

Copper alloy

Silver-plated

≤1mΩ

≤3mΩ

2.5-8mm²

0.2-2.5mm²

24-14 AWG

2.5mm²→1.5Nm

4mm²→1.5Nm

6mm²→2Nm

0.2-2.5mm²→0.8Nm

2.5mm²→5mm⁺¹

4mm²→5mm⁺¹

6mm²→8mm⁺¹

0.2-2.5mm²→7.5mm

DIN EN 60664

DIN EN 61984
