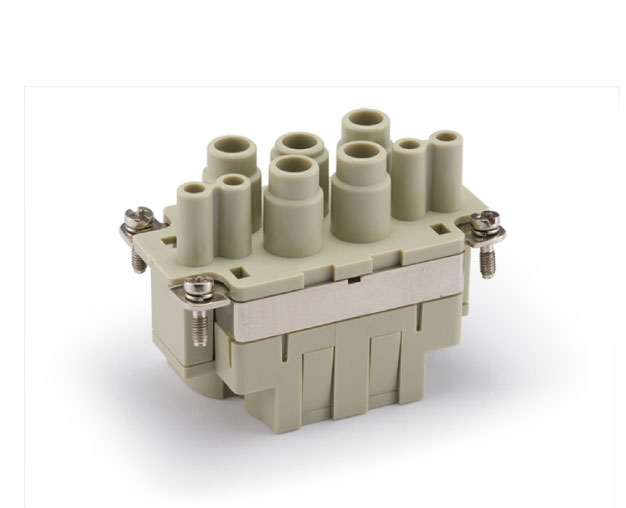

HK-004/4-FC
HK-004/4-FC

Model： HK-004/4-FC

Order No： 128 008 020 0001

Do you need to order crimp contacts separately： Yes

Suitable for the shell of the insert housing

Pin suitable for the core body

INQUIRY NOW
QUICK SEARCH
Quickly search through "order number", "model", or "keywords"
Download the PDF version of the complete parameter table
Product video
Collect this product
Technical Data
  • Series

    HK insert series

  • Male/female

    Female

  • Connection type

    Crimp connection

  • Specifications

    10B

  • Number of connector contacts

    4+4

  • Grounding contacts

    Yes

  • Rated current

    70A

    16A

  • Rated voltage

    690V

    250V

  • Rated pulse voltage

    8KV

    4KV

  • Class of pollution

    3

  • Insulation resistance

    ≥10¹ºΩ

  • Working temperature

    -40℃...+125℃

  • Mating cycles

    ≥500

  • Inserts material

    Polycarbonate

  • Inserts color

    RAL 7032 (light gray)

  • Flame retardant rating as per UL94

    V0

  • Contact material

    Copper alloy

  • Surface treatment

    Silver-plated

  • Contact resistance

    ≤0.5mΩ

    ≤1mΩ

  • Wire gauge (mm²)

    10-25mm²

    0.14-4mm²

  • Wire gauge (AWG)

    8-3 AWG

    26-12 AWG

  • Stripping length

    10-25mm²→15.5mm

    0.14-4mm²→7.5mm

  • Standard

    DIN EN 60664

    DIN EN 61984

Authentication
Downloads
2D Drawings
3D Models
