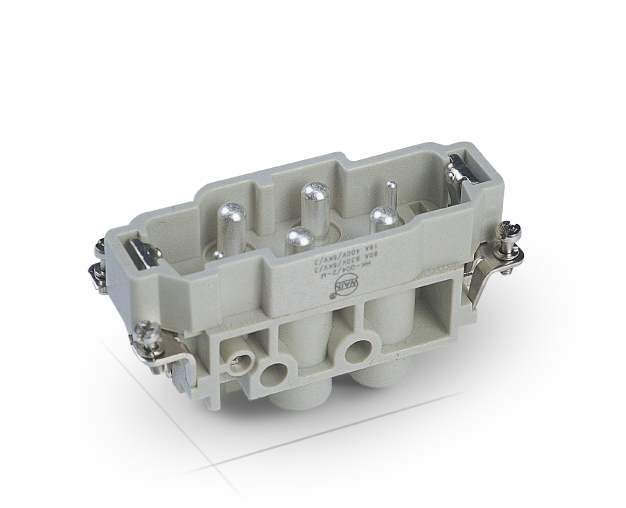

HK-004/2-M

Model： HK-004/2-M

Order No： 128 006 011 0001

Do you need to order crimp contacts separately： No

Suitable for the shell of the insert housing

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HK insert series
Connection type

Screw connection
Male/female

Male
Specifications

16B
Number of connector contacts

4+2
Grounding contacts

Yes
Rated current

80A

16A
Rated voltage

830V

400V
Rated pulse voltage

8KV

6KV
Class of pollution

3
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Inserts material

Polycarbonate
Inserts color

RAL 7032 (light gray)
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Silver-plated
Contact resistance

≤0.3mΩ

≤1mΩ
Wire gauge (mm²)

1.5-16mm²

0.5-2.5mm²
Wire gauge (AWG)

16-6 AWG

20-14 AWG
Tightening/testing torque

1.5mm²→1.2Nm

2.5mm²→2Nm

4mm²→3Nm

6mm²→3Nm

10mm²→3Nm

16mm²→3Nm

0.5-2.5mm²→0.5Nm
Stripping length

1.5-16mm²→14mm

0.5-2.5mm²→7.5mm
Standard

DIN EN 60664

DIN EN 61984

Authentication

UL
CUL
VDE
CE
EAC
CQC
